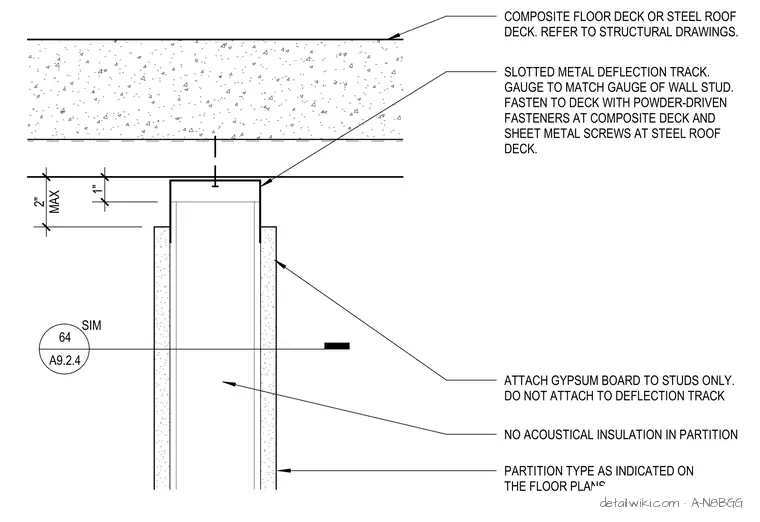

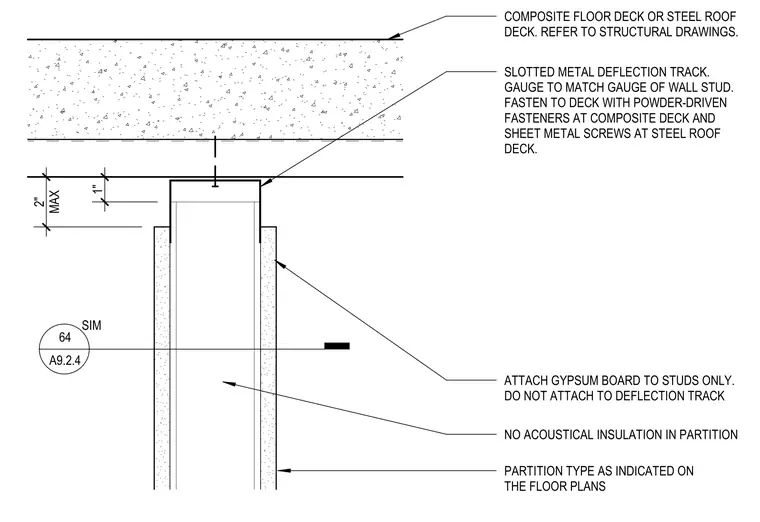

This assembly consists of a cold-formed steel stud wall terminating at a composite floor deck or steel roof deck. A slotted metal deflection track, matching the gauge of the wall studs, is fastened to the deck using powder-driven fasteners for composite decks or sheet metal screws for steel roof decks. Gypsum board is attached only to the wall studs and must remain unattached to the deflection track to allow for vertical movement. A maximum two-inch gap is maintained between the top of the stud and the underside of the deck, with a one-inch clearance indicated for the track slot. No acoustical insulation is included within the partition cavity.
Text on the drawing
COMPOSITE FLOOR DECK OR STEEL ROOF DECK. REFER TO STRUCTURAL DRAWINGS. SLOTTED METAL DEFLECTION TRACK. GAUGE TO MATCH GAUGE OF WALL STUD. FASTEN TO DECK WITH POWDER-DRIVEN FASTENERS AT COMPOSITE DECK AND SHEET METAL SCREWS AT STEEL ROOF DECK. PARTITION TYPE AS INDICATED ON THE FLOOR PLANS ATTACH GYPSUM BOARD TO STUDS ONLY. DO NOT ATTACH TO DEFLECTION TRACK PERPENDICULAR TO STEEL DECK FLUTES: AT BOTTOM OF FLUTES AT METAL STUD WALL AND STEEL DECK W/O ACOUSTICAL INSULATION A 64 A9.2.4 SIM MAX 2" 1" NO ACOUSTICAL INSULATION IN PARTITION
