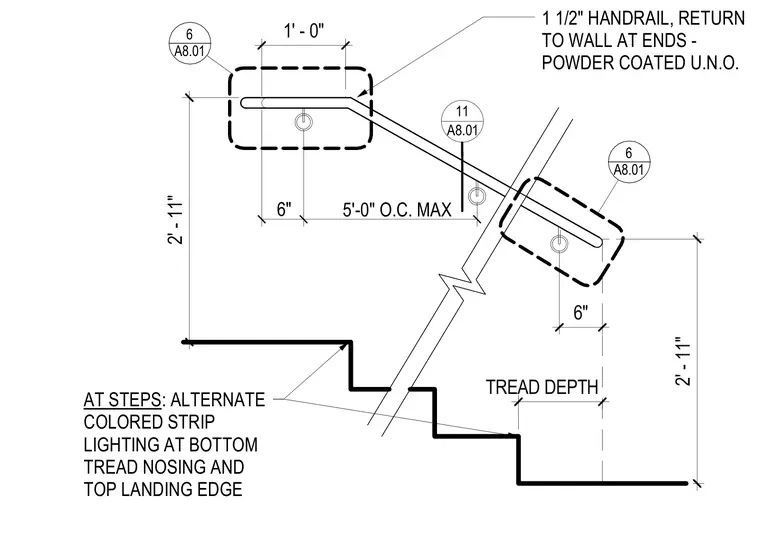

A one and one-half inch diameter handrail mounts to the adjacent wall with brackets spaced at a maximum of five feet on center. Ends of the handrail return directly to the wall and feature a powder-coated finish unless noted otherwise. Stair steps include alternate colored strip lighting positioned at the bottom tread nosing and the top landing edge. Vertical mounting height is set at two feet eleven inches above the tread nosing.
6" 5'-0" O.C. MAX 1 1/2" HANDRAIL, RETURN TO WALL AT ENDS - POWDER COATED U.N.O. 2' - 11" 6" 2' - 11" TREAD DEPTH 1' - 0" AT STEPS: ALTERNATE COLORED STRIP LIGHTING AT BOTTOM TREAD NOSING AND TOP LANDING EDGE 6 A8.01 6 A8.01 A8.01 11
