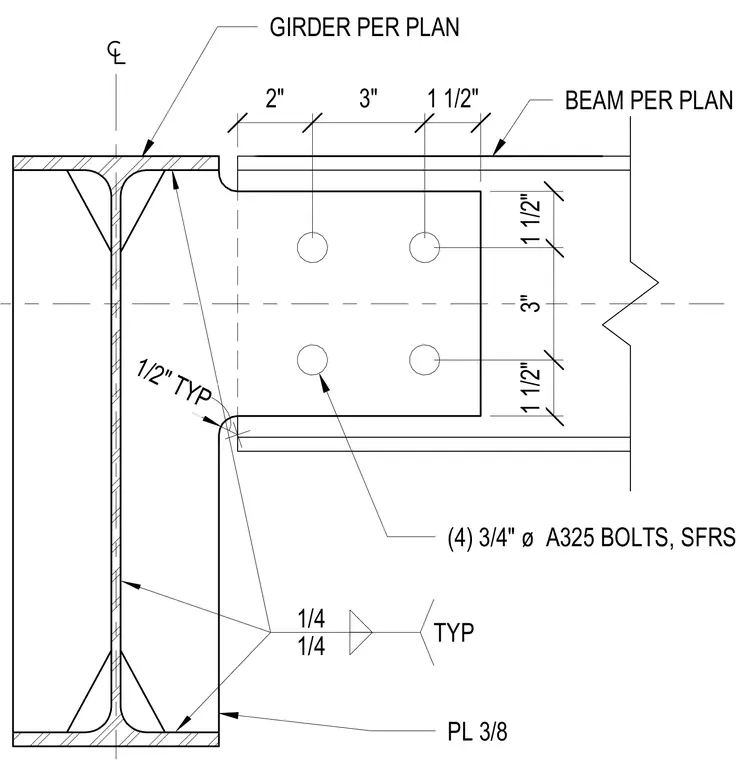

A three-eighths-inch thick gusset plate connects a horizontal steel brace or framing beam per plan to a wide-flange steel girder. The connection uses four three-quarter-inch diameter A325 bolts. The plate is welded to the girder web and flanges with one-quarter-inch typical fillet welds. Stiffener plates welded inside the girder web align with the brace connection to transfer lateral loads.
BEAM PER PLAN 2" 3" 1 1/2" 1/4 1/4 TYP GIRDER PER PLAN (4) 3/4" ø A325 BOLTS, SFRS 1 1/2" 3" 1 1/2" 1/2" TYP PL 3/8
