Roof Crown Gutter and Curtain Wall Parapet Detail

Materials

Elements

Walls Curtain Walls Roofs Parapets Decks Waterproofing / Flashing Insulation Drainage Millwork / Casework Anchors / Embeds Connections / Plates

About this detail

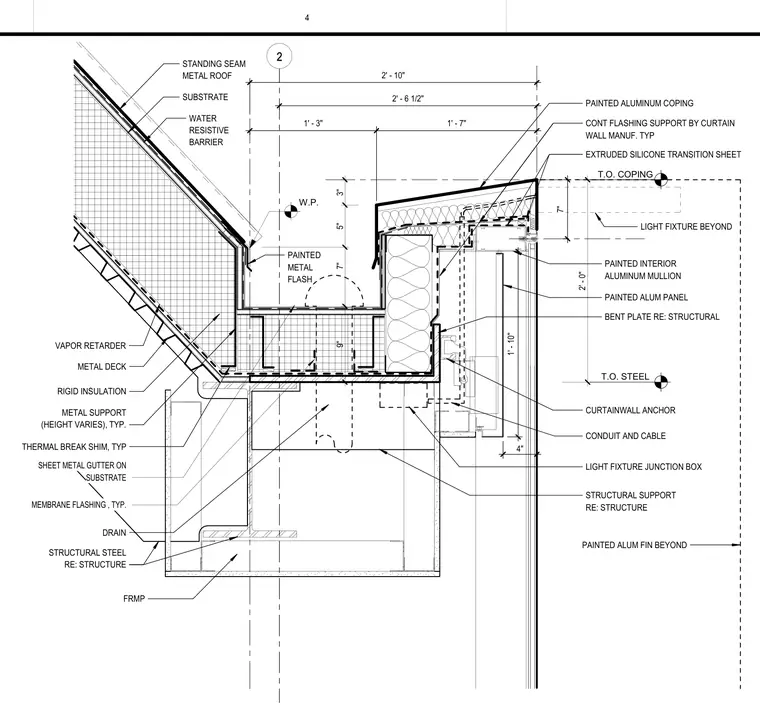

Junction between a standing seam metal roof and a curtain wall crown, featuring a sheet metal gutter over substrate with membrane flashing and a drain. The assembly is supported by structural steel members, metal supports with thermal break shims, and bent plates coordinated with the structure. The parapet is capped with a painted aluminum coping over continuous flashing support and an extruded silicone transition sheet. The exterior wall incorporates a painted aluminum panel, an interior aluminum mullion, a water-resistive barrier, and rigid insulation. Electrical elements including a conduit, cable, and a light fixture junction box are integrated into the assembly behind the curtain wall anchor.
