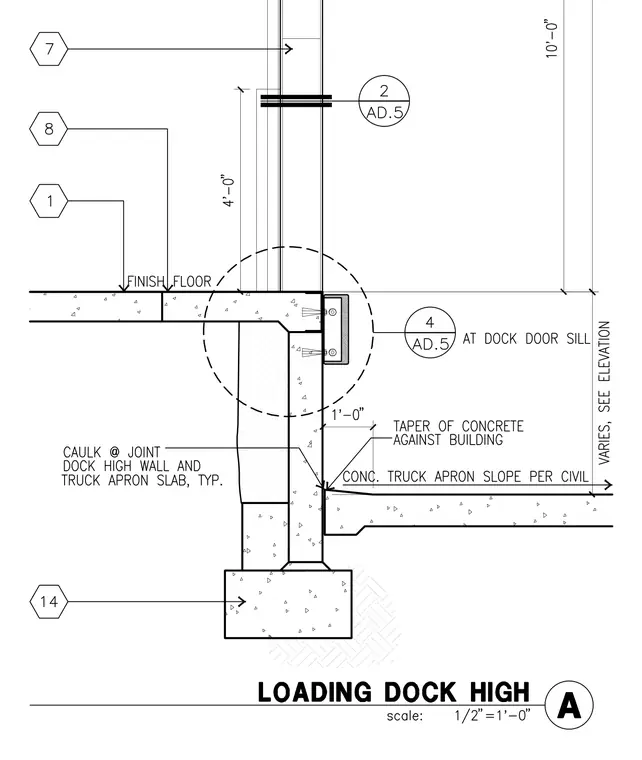

A high-wall concrete loading dock assembly features a concrete foundation wall supporting an upper finish floor slab and exterior wall construction. The truck apron slab abuts the lower dock wall with a sloped taper against the building and caulking at the joint. Dimensioning includes a 4'-0" upper floor height, 1'-0" wall offset, and a 10'-0" upper vertical extent. Detail reference bubbles direct to other sheets for sill and wall conditions.
