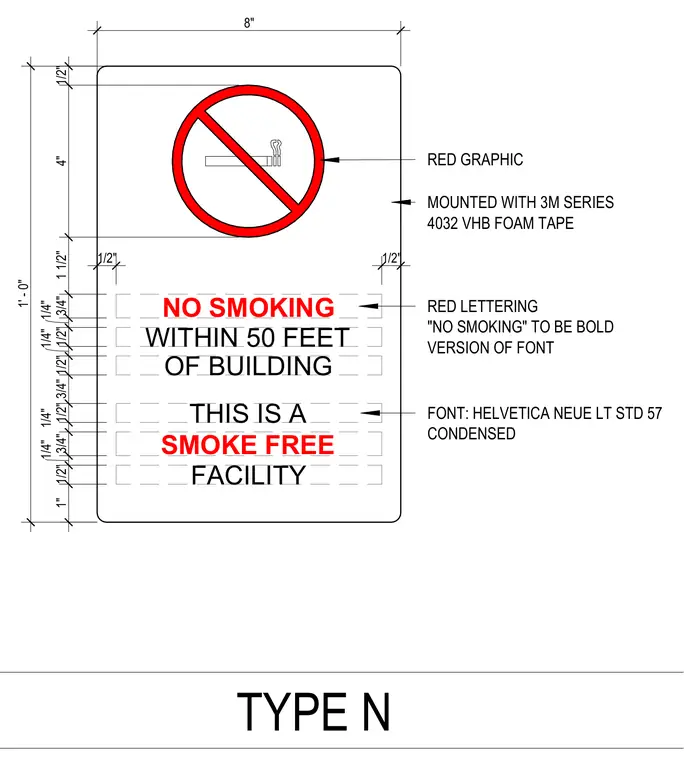

The sign measures eight inches wide by one foot high with rounded corners and features a red no-smoking graphic above bold red and black lettering. The text reads "NO SMOKING WITHIN 50 FEET OF BUILDING THIS IS A SMOKE FREE FACILITY" in Helvetica Neue LT Std 57 Condensed font. The assembly is mounted using 3M Series 4032 VHB foam tape.
TYPE N 8" 1' - 0" 1/2" 1/2" 4" 1 1/2" 3/4" 1/4" 1/2" 1/4" 1/2" 3/4" 1/2" 1/4" 3/4" 1/4" 1/2" 1" NO SMOKING RED GRAPHIC RED LETTERING "NO SMOKING" TO BE BOLD VERSION OF FONT FONT: HELVETICA NEUE LT STD 57 CONDENSED 1/2" WITHIN 50 FEET OF BUILDING SMOKE FREE THIS IS A FACILITY MOUNTED WITH 3M SERIES 4032 VHB FOAM TAPE
