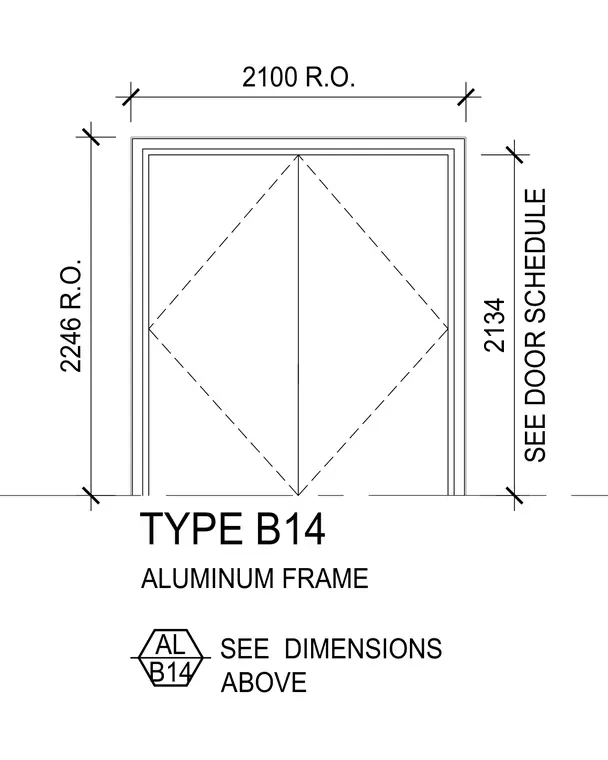

Type B14 aluminum door frame with a rough opening width of 2100 and height of 2246. The frame features a door height of 2134 as specified in the door schedule. Dimensions are referenced above.
SEE DIMENSIONS ABOVE TYPE B14 ALUMINUM FRAME AL B14 2246 R.O. 2134 SEE DOOR SCHEDULE 2100 R.O.
