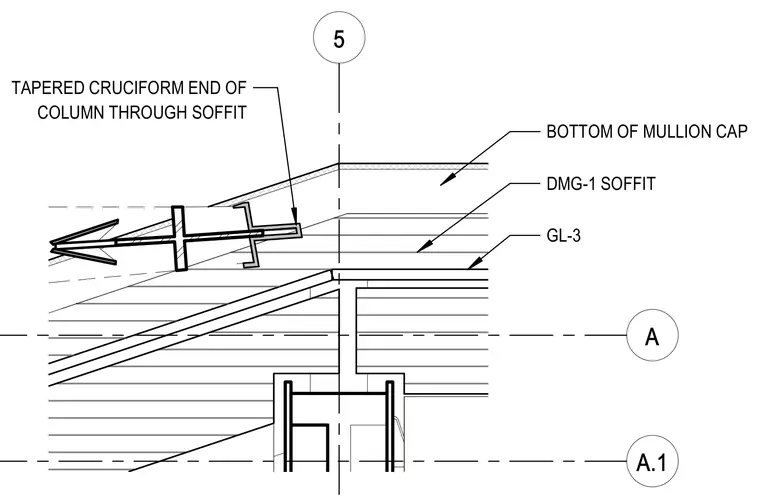

A tapered cruciform column end penetrates through a DMG-1 metal soffit assembly adjacent to a bottom of mullion cap and GL-3 glazing element. The detail establishes the spatial coordination and intersection between the structural column profile and the exterior soffit and glazing systems.
A 5 A.1 DMG-1 SOFFIT BOTTOM OF MULLION CAP TAPERED CRUCIFORM END OF COLUMN THROUGH SOFFIT GL-3
