About this detail

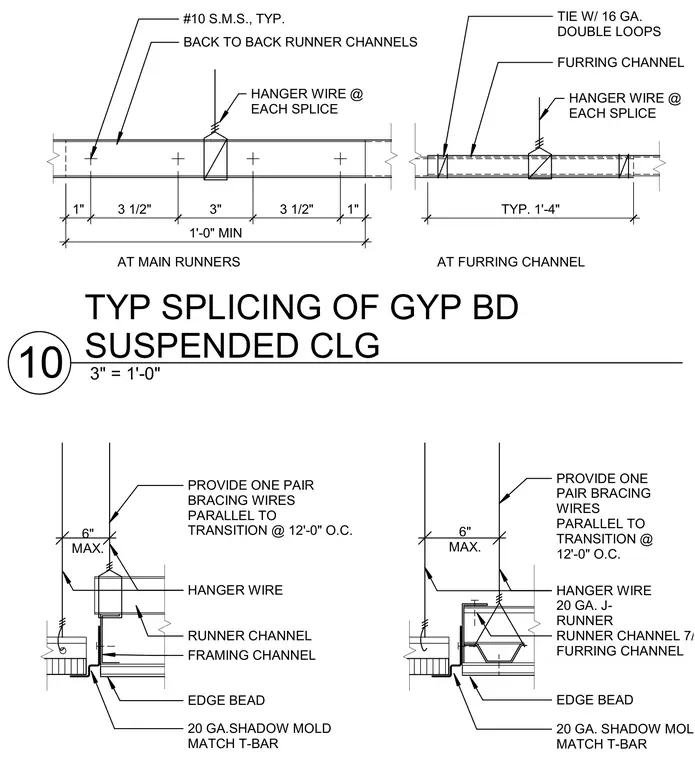

Standard splicing methods and perimeter conditions for suspended gypsum board ceiling framing. Main runner channels feature back-to-back channel connections secured with number ten sheet metal screws, spaced symmetrically with a one-foot-zero-inch minimum lap. Hanger wires are positioned at each splice and tied with sixteen gauge double loops, supplemented by pairs of bracing wires parallel to transitions at twelve-foot on-center maximums. Furring channels are tied with sixteen-gauge double loops at each splice and spaced typically at one-foot-four-inches on center. Perimeter conditions detail twenty-gauge shadow mold matching tee-bars, twenty-gauge J-runners, framing channels, and edge beads.
