The roof assembly consists of a TPO roofing membrane applied over a one-half-inch cover board. A metal deck supports the cover board and bears on twelve-inch metal framing.

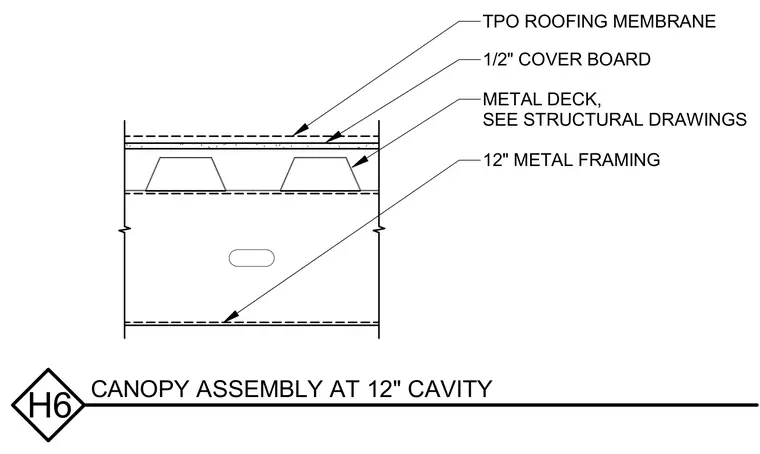

H6 CANOPY ASSEMBLY AT 12" CAVITY TPO ROOFING MEMBRANE METAL DECK, SEE STRUCTURAL DRAWINGS 1/2" COVER BOARD 12" METAL FRAMING
