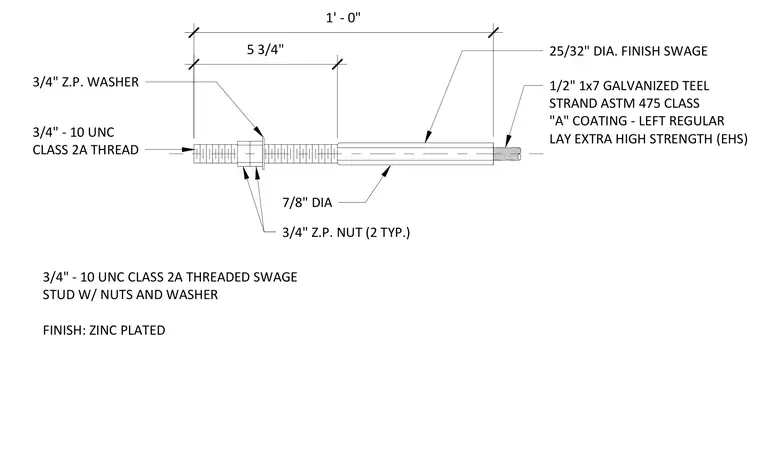

A three-quarter-inch cable end termination stud assembly utilizes a one-half-inch, one-by-seven galvanized steel strand conforming to ASTM 475 Class A coating with a left regular lay extra high strength specification. The strand connects into a finish swage measuring twenty-five thirty-seconds of an inch in diameter transitioning to a seven-eighths-inch diameter section. The assembly terminates with a three-quarter-inch by ten UNC Class 2A threaded swage stud fitted with two typical three-quarter-inch zinc plated nuts and a three-quarter-inch zinc plated washer. All components feature a zinc plated finish.
5 3/4" 1' - 0" 1/2" 1x7 GALVANIZED TEEL STRAND ASTM 475 CLASS "A" COATING - LEFT REGULAR LAY EXTRA HIGH STRENGTH (EHS) 3/4" Z.P. WASHER 3/4" Z.P. NUT (2 TYP.) 3/4" Z.P. NUT (2 TYP.) 3/4" - 10 UNC CLASS 2A THREAD 7/8" DIA 25/32" DIA. FINISH SWAGE 3/4" - 10 UNC CLASS 2A THREADED SWAGE STUD W/ NUTS AND WASHER FINISH: ZINC PLATED
