The assembly features a one-half-inch solid surface countertop resting on a one-and-one-half-inch plastic laminate on medium-density fiberboard substrate counter top support spaced at four feet on center. The front vertical face incorporates a one-half-inch resin panel attached with stainless steel fasteners and areas of plastic laminate on three-quarter-inch and one-half-inch medium-density fiberboard substrates. A two-and-one-half-inch diameter hole with a three-millimeter edge banding provides cable management through the counter construction.

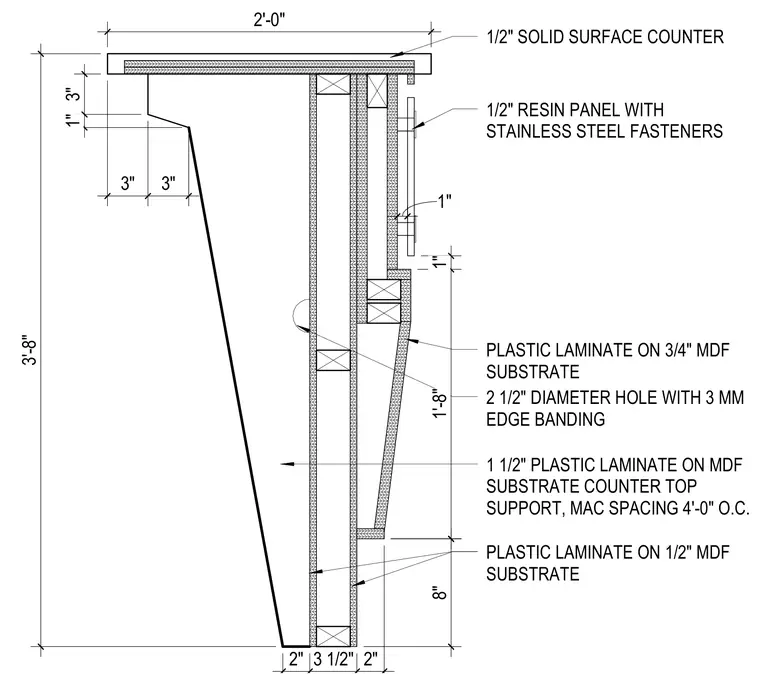

3'-8" 1" 3" 3" 3" 2" 3 1/2" 2" 8" 1/2" SOLID SURFACE COUNTER 1/2" RESIN PANEL WITH STAINLESS STEEL FASTENERS PLASTIC LAMINATE ON 3/4" MDF SUBSTRATE PLASTIC LAMINATE ON 1/2" MDF SUBSTRATE 2 1/2" DIAMETER HOLE WITH 3 MM EDGE BANDING 1 1/2" PLASTIC LAMINATE ON MDF SUBSTRATE COUNTER TOP SUPPORT, MAC SPACING 4'-0" O.C. 2'-0" 1" 1'-8" 1"
