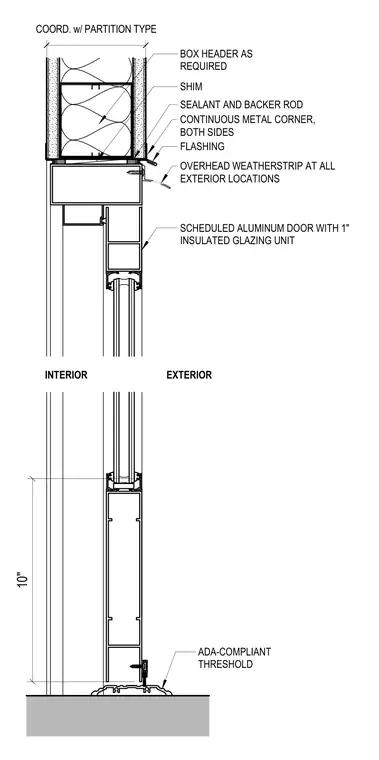

An aluminum storefront door frame integrates with an overhead box header coordinated with the partition type. Shims level the frame beneath continuous metal corners installed on both sides with sealant and backer rod. Flashing and overhead weatherstrip protect the exterior head condition above an aluminum door with a one-inch insulated glazing unit. An ADA-compliant threshold sits at the base of the opening.
COORD. w/ PARTITION TYPE BOX HEADER AS REQUIRED CONTINUOUS METAL CORNER, BOTH SIDES SEALANT AND BACKER ROD OVERHEAD WEATHERSTRIP AT ALL EXTERIOR LOCATIONS FLASHING SCHEDULED ALUMINUM DOOR WITH 1" INSULATED GLAZING UNIT ADA-COMPLIANT THRESHOLD INTERIOR EXTERIOR SHIM 10"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
