A-N5VGW — Curb Detail

Architectural · A-N5VGW

Curb Detail

Scale: SCALE: 3" = 1'-0"
Units: imperial
Sheet: A5
Discipline: Architectural

Materials

Concrete Reinforced Concrete

Elements

Floors / Slabs Reinforcing Site / Paving

Text on the drawing

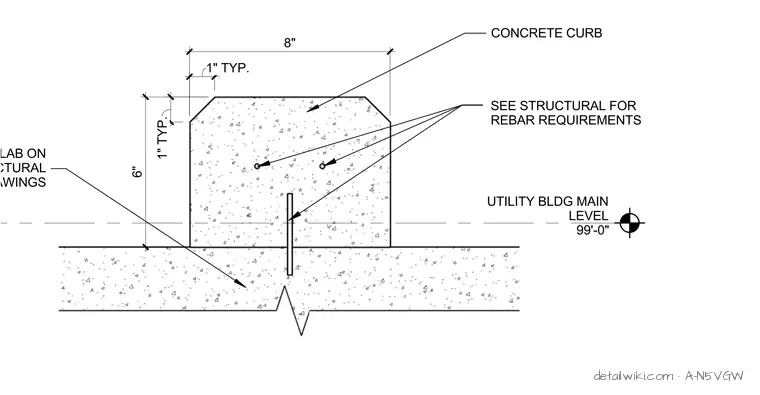

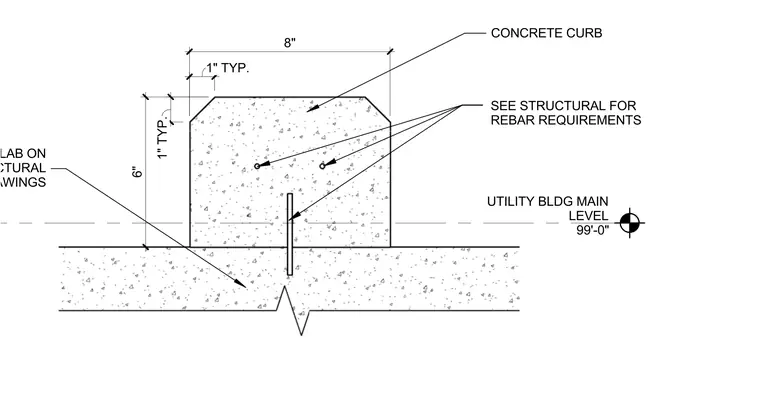

UTILITY BLDG MAIN LEVEL 99'-0" CONCRETE SLAB ON GRADE. RE: STRUCTURAL DRAWINGS CONCRETE CURB 8" 6" SEE STRUCTURAL FOR REBAR REQUIREMENTS 1" TYP. 1" TYP. SEE STRUCTURAL FOR REBAR REQUIREMENTS SEE STRUCTURAL FOR REBAR REQUIREMENTS
