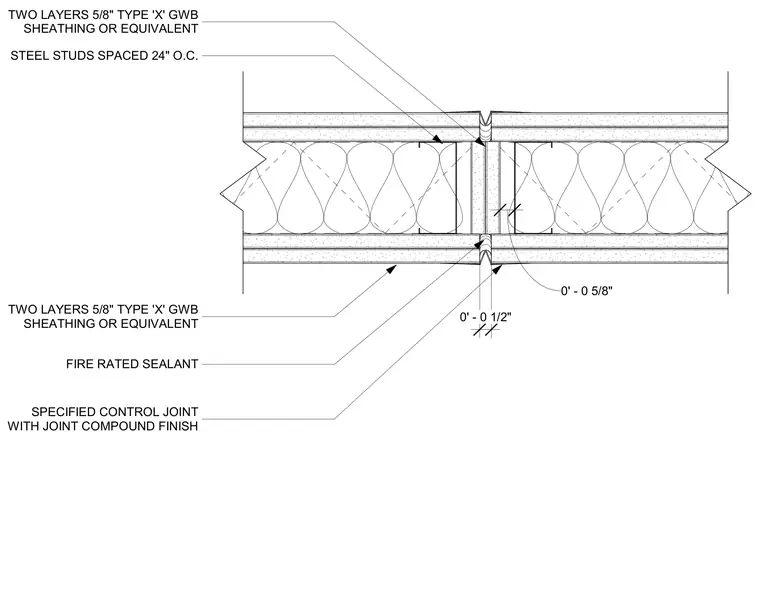

Two layers of 5/8-inch Type X gypsum wallboard sheathing face each side of steel studs spaced 24 inches on center. A specified control joint with joint compound finish spans the exterior face, aligned with a fire-rated sealant within the joint gap. The assembly maintains a 1/2-inch to 5/8-inch joint dimension across the partition break.
TWO LAYERS 5/8" TYPE 'X' GWB SHEATHING OR EQUIVALENT STEEL STUDS SPACED 24" O.C. SPECIFIED CONTROL JOINT WITH JOINT COMPOUND FINISH FIRE RATED SEALANT TWO LAYERS 5/8" TYPE 'X' GWB SHEATHING OR EQUIVALENT 0' - 0 5/8" 0' - 0 1/2"
