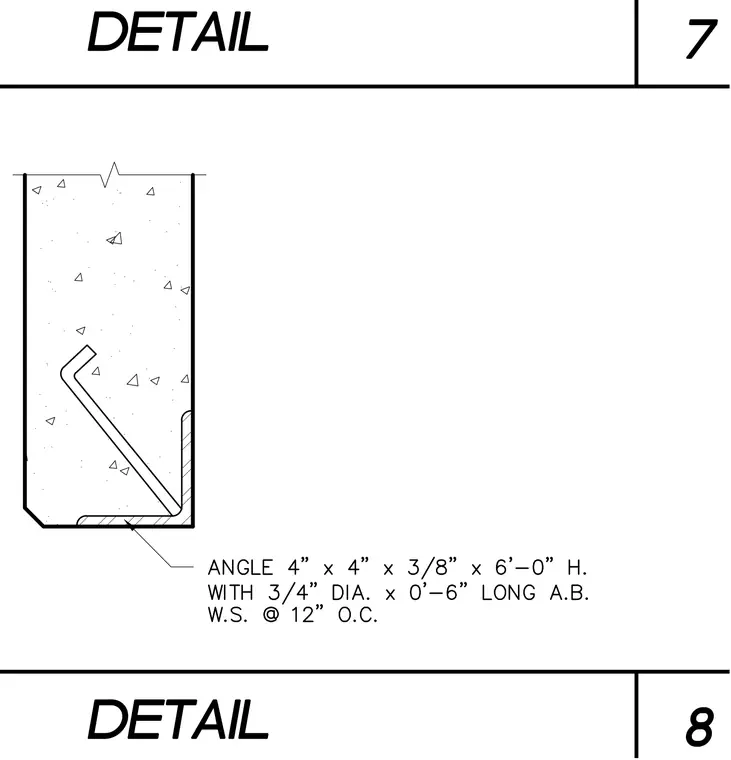

An embedded steel angle measuring four inches by four inches by three-eighths of an inch and six feet long is cast into the edge of a concrete member. The angle is secured with three-quarter-inch diameter by six-inch long hooked anchor bolts spaced at twelve inches on center.
