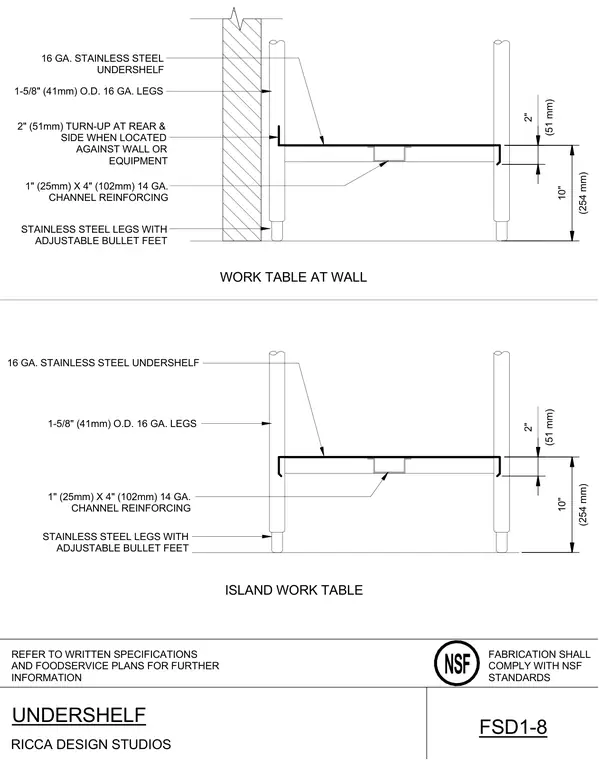

Commercial food service work tables feature a 16-gauge stainless steel undershelf supported by 1-5/8 inch outer diameter 16-gauge stainless steel legs with adjustable bullet feet. The undershelf incorporates a 1 inch by 4 inch 14-gauge channel reinforcing member beneath the surface for structural support. Configurations include a 2-inch turn-up at the rear and sides when positioned against a wall or equipment for wall-mounted applications, and a flat profile for island work tables. Fabrication complies with National Sanitation Foundation standards per written specifications.
REFER TO WRITTEN SPECIFICATIONS AND FOODSERVICE PLANS FOR FURTHER INFORMATION RICCA DESIGN STUDIOS FABRICATION SHALL COMPLY WITH NSF STANDARDS NSF UNDERSHELF FSD1-8 16 GA. STAINLESS STEEL UNDERSHELF 2" (51mm) TURN-UP AT REAR & SIDE WHEN LOCATED AGAINST WALL OR EQUIPMENT 1-5/8" (41mm) O.D. 16 GA. LEGS STAINLESS STEEL LEGS WITH ADJUSTABLE BULLET FEET 1" (25mm) X 4" (102mm) 14 GA. CHANNEL REINFORCING 16 GA. STAINLESS STEEL UNDERSHELF 1-5/8" (41mm) O.D. 16 GA. LEGS STAINLESS STEEL LEGS WITH ADJUSTABLE BULLET FEET 1" (25mm) X 4" (102mm) 14 GA. CHANNEL REINFORCING WORK TABLE AT WALL ISLAND WORK TABLE (254 mm) 10" (254 mm) 10" (51 mm) 2" (51 mm) 2"
