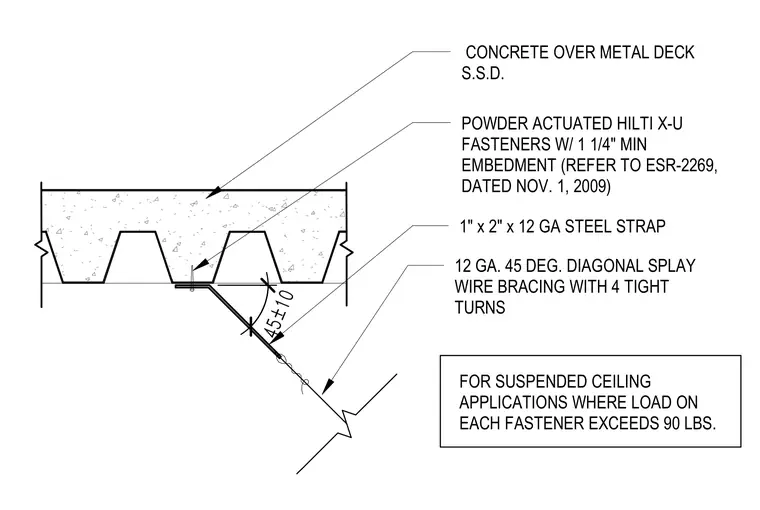

A twelve-gauge forty-five-degree diagonal splay wire bracing attaches to a concrete over metal deck ceiling assembly for heavy load applications exceeding ninety pounds per fastener. A one-inch by two-inch by twelve-gauge steel strap anchors directly into the concrete deck via powder-actuated Hilti X-U fasteners maintaining a one-and-one-quarter-inch minimum embedment in accordance with ESR-2269. The bracing wire features four tight turns and is oriented at a forty-five degree angle with a ten-degree tolerance.
CONCRETE OVER METAL DECK S.S.D. 1" x 2" x 12 GA STEEL STRAP 12 GA. 45 DEG. DIAGONAL SPLAY WIRE BRACING WITH 4 TIGHT TURNS FOR SUSPENDED CEILING APPLICATIONS WHERE LOAD ON EACH FASTENER EXCEEDS 90 LBS. POWDER ACTUATED HILTI X-U FASTENERS W/ 1 1/4" MIN EMBEDMENT (REFER TO ESR-2269, DATED NOV. 1, 2009) 45±10
