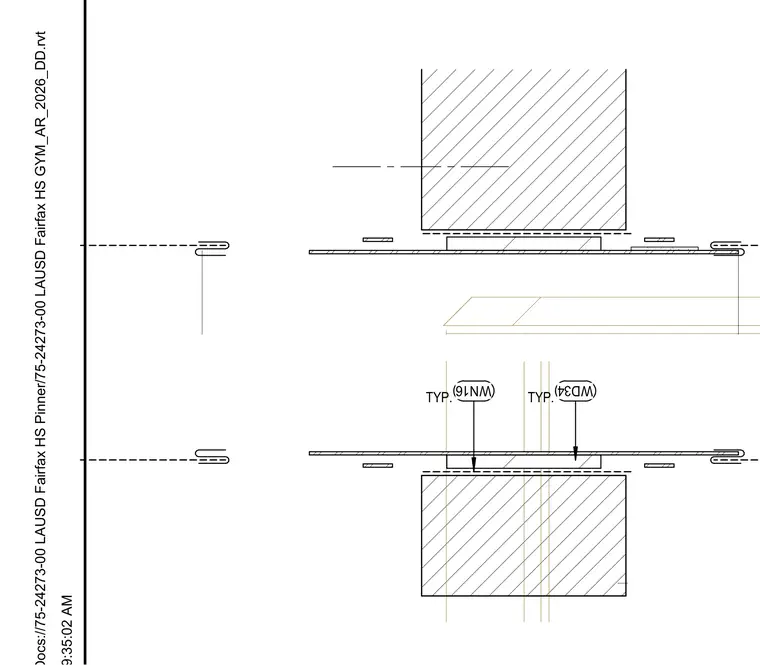

A low roof duct penetration passes through a gymnasium wall assembly. The construction includes typical wall details designated by callouts WD34 and WN16.
TYP. WD34 TYP. WN16
