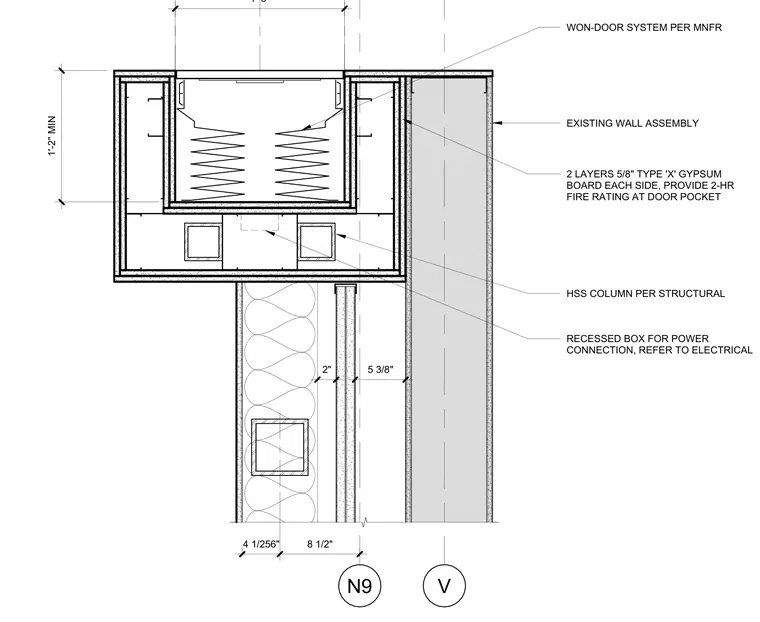

This plan detail shows a Won-Door system manufacturer pocket installed adjacent to an existing wall assembly. The pocket framing incorporates hollow structural section columns and is lined with two layers of 5/8-inch Type X gypsum board on each side to achieve a two-hour fire rating. A recessed box for power connections is integrated into the assembly coordinate with electrical plans.
5 3/8" 2" V N9 WON-DOOR SYSTEM PER MNFR 2 LAYERS 5/8" TYPE 'X' GYPSUM BOARD EACH SIDE, PROVIDE 2-HR FIRE RATING AT DOOR POCKET HSS COLUMN PER STRUCTURAL RECESSED BOX FOR POWER CONNECTION, REFER TO ELECTRICAL EXISTING WALL ASSEMBLY 1'-2" MIN 1'-6" 4 1/256" 8 1/2"
