Architectural · A-N4SNG

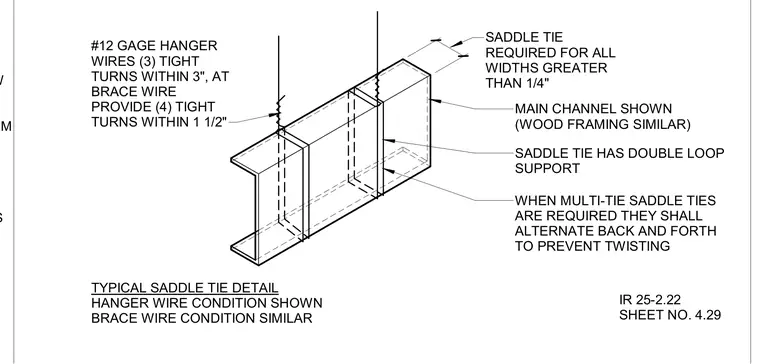

Typical Saddle Tie Detail for Suspended Ceiling Channel

Materials

Steel Timber / Wood Gypsum / Drywall

Elements

Walls Shear Walls Ceilings Bracing Connections / Plates Reinforcing

Connections

Bracing Connection

About this detail

A saddle tie connection for suspended ceiling framing systems utilizes a main steel or wood channel. Number 12 gauge hanger or brace wires wrap around the channel with a double loop support and require three tight turns within three inches for hanger wires, or four tight turns within one and one-half inches for brace wires. Saddle ties are specified for all widths greater than one-quarter inch. When multi-tie saddle ties are required, they alternate back and forth along the channel to prevent twisting.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
