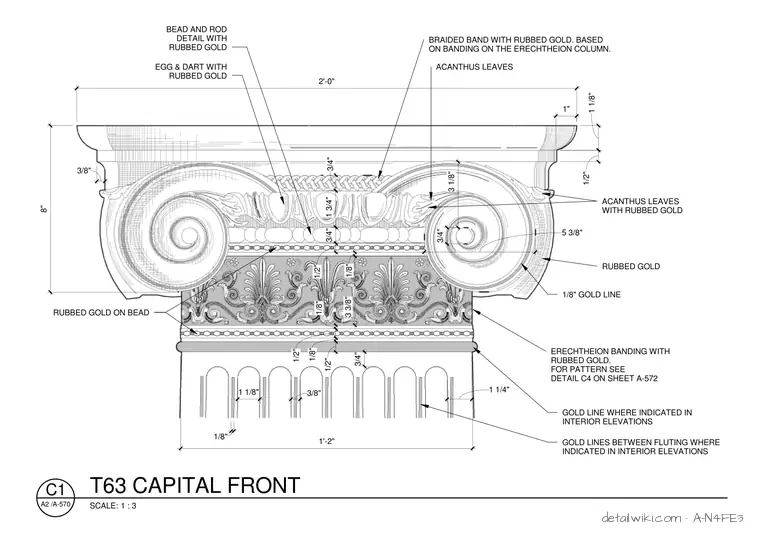

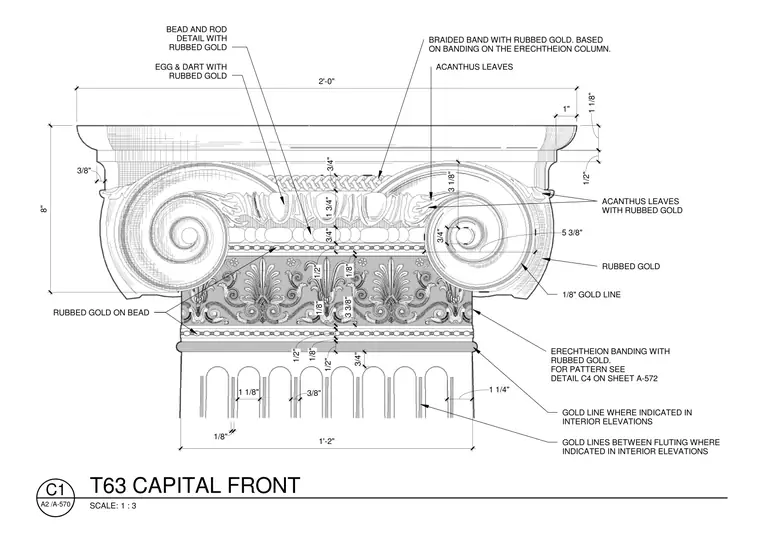

An architectural elevation of a classical column capital features intricate ornamental details including acanthus leaves, egg and dart molding, bead and rod details, and a braided band based on the Erechtheion column. Dimensions indicate an overall capital width of two feet and a height of eight inches, with detailed spacing and profile measurements for each ornamental band and fluted column neck. Specified finishes include rubbed gold applied to specific carved elements and gold lines located between fluting and on beads. Callouts reference pattern details on sheet A-572 for the Erechtheion banding.
1 1/8" 5 3/8" 3/8" 1 1/4" 1" 1 1/8" 1/2" 8" 3/4" 1 3/4" 3/4" 1/2" 1/8" 3 3/8" ERECHTHEION BANDING WITH RUBBED GOLD. FOR PATTERN SEE DETAIL C4 ON SHEET A-572 3/4" 1/8" 1/2" 1/8" 1/2" 2'-0" 1'-2" BRAIDED BAND WITH RUBBED GOLD. BASED ON BANDING ON THE ERECHTHEION COLUMN. 3/8" 3/4" 3 1/8" ACANTHUS LEAVES WITH RUBBED GOLD ACANTHUS LEAVES EGG & DART WITH RUBBED GOLD GOLD LINES BETWEEN FLUTING WHERE INDICATED IN INTERIOR ELEVATIONS GOLD LINE WHERE INDICATED IN INTERIOR ELEVATIONS 1/8" 1/8" GOLD LINE RUBBED GOLD RUBBED GOLD ON BEAD BEAD AND ROD DETAIL WITH RUBBED GOLD SCALE: 1 : 3 A2 /A-570 T63 CAPITAL FRONT C1
