Architectural · A-N3ZA6

Column and Window Head Intersection with EIFS Wall

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Beams Walls Windows Ceilings Bracing Insulation Drainage Connections / Plates Reinforcing

Connections

Bracing Connection

About this detail

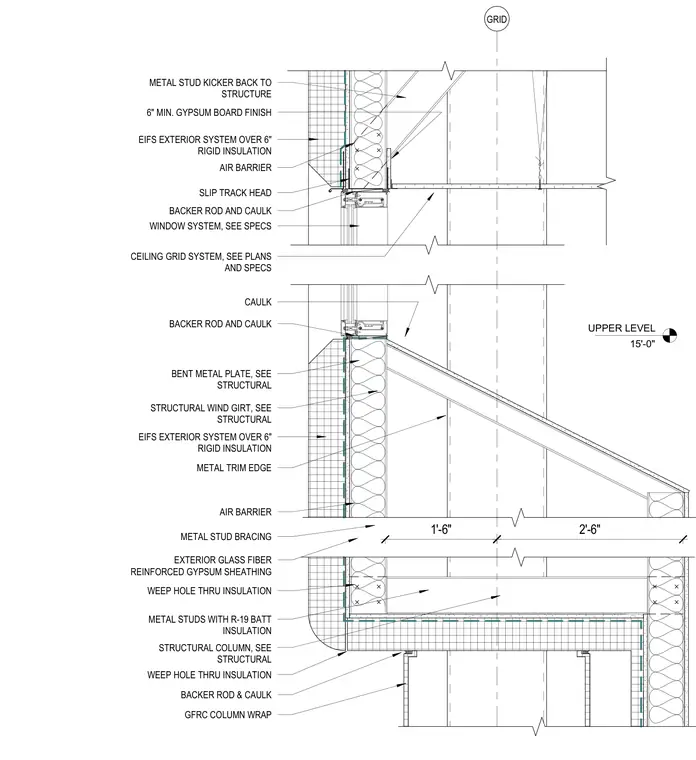

This wall section details the transition around a structural column and window head assembly. The exterior features an EIFS finish system installed over six inches of rigid insulation, an air barrier, and exterior glass fiber reinforced gypsum sheathing on metal studs with R-19 batt insulation. A slip track head supports the window system, while a metal stud kicker provides back-to-structure bracing. Near the upper level, a structural wind girt and bent metal plate connect back to the structural column. A GFRC column wrap finishes the exterior column profile, complete with backer rod and caulk joints and weepholes through the insulation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
