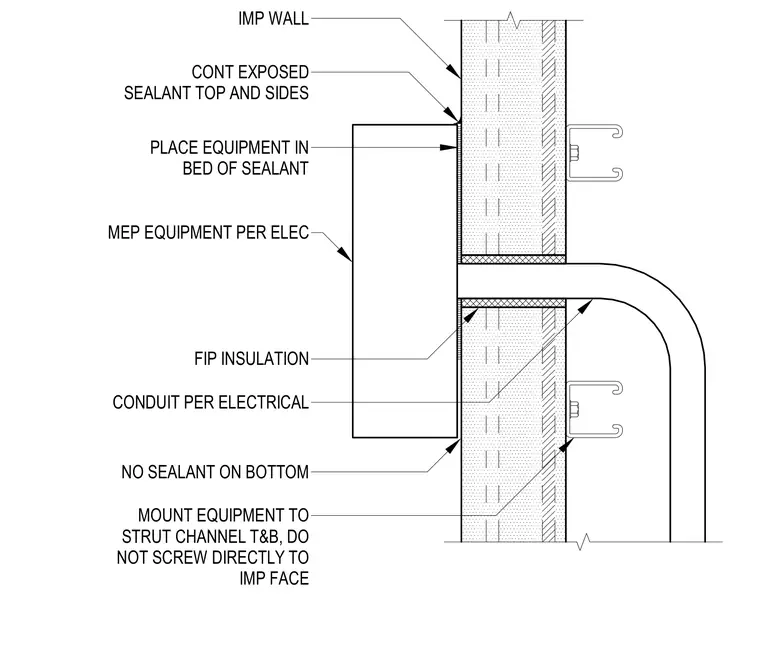

Mechanical, electrical, and plumbing equipment is surface mounted directly to insulated metal panel walls using top and bottom strut channels, avoiding direct screws into the insulated metal panel face. The equipment is placed in a continuous bed of sealant and sealed at the top and sides while leaving the bottom unsealed for drainage. Conduit passes through the insulated metal panel with foamed-in-place insulation per electrical specifications.
IMP WALL CONT EXPOSED SEALANT TOP AND SIDES PLACE EQUIPMENT IN BED OF SEALANT MEP EQUIPMENT PER ELEC NO SEALANT ON BOTTOM MOUNT EQUIPMENT TO STRUT CHANNEL T&B, DO NOT SCREW DIRECTLY TO IMP FACE FIP INSULATION CONDUIT PER ELECTRICAL
