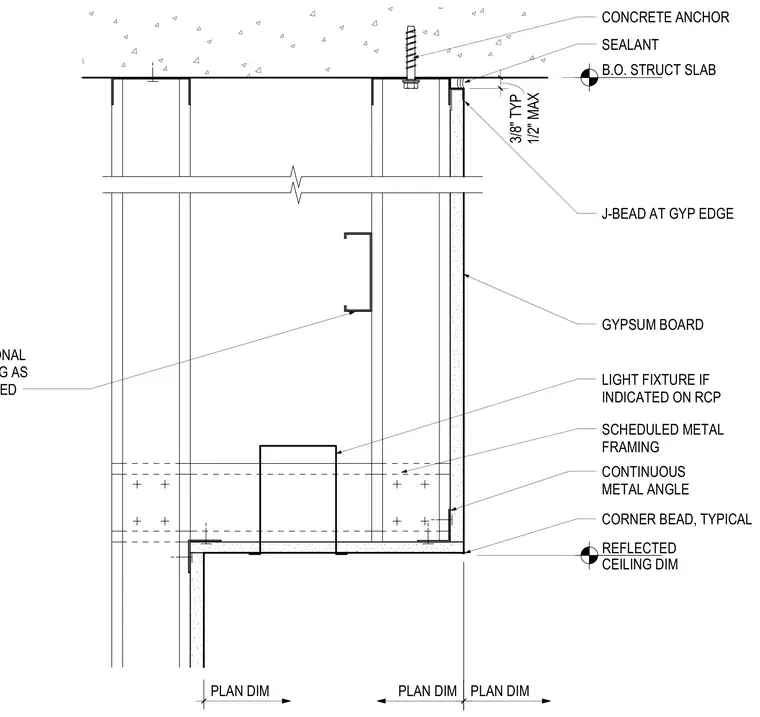

Gypsum board framing attaches to a continuous metal angle anchored directly to the underside of the structural concrete slab using concrete anchors. Scheduled metal framing studs run vertically and horizontally to form the furr-down shape, tied together with corner beads and J-beads at the gypsum board edges. Sealant is applied at the slab-to-gypsum junction with specified joint clearances. Additional bracing is provided as required by structural layout, and provisions are included for light fixtures indicated on the reflected ceiling plan.
B.O. STRUCT SLAB GYPSUM BOARD SCHEDULED METAL FRAMING REFLECTED CEILING DIM CORNER BEAD, TYPICAL CONTINUOUS METAL ANGLE J-BEAD AT GYP EDGE CONCRETE ANCHOR PLAN DIM PLAN DIM ADDITIONAL BRACING AS REQUIRED PLAN DIM LIGHT FIXTURE IF INDICATED ON RCP 1/2" MAX 3/8" TYP SEALANT
