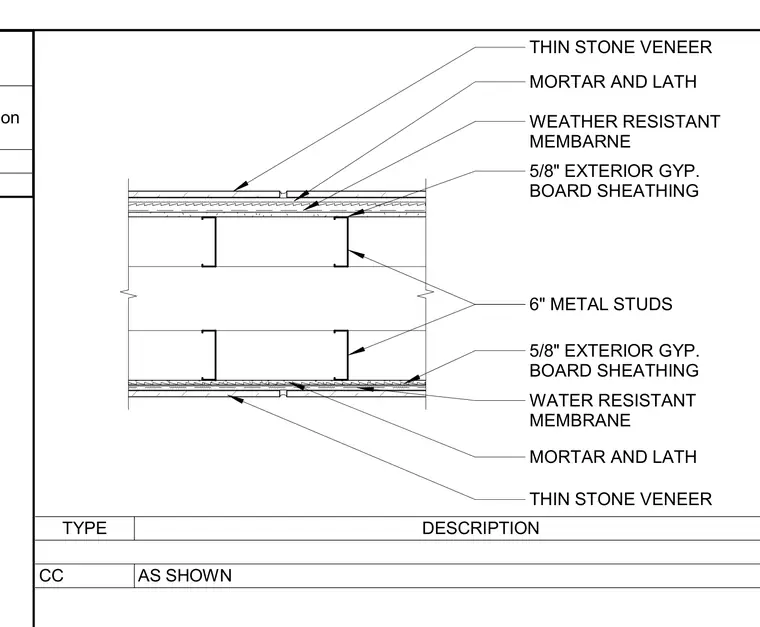

The exterior wall assembly consists of six-inch metal studs faced with five-eighths-inch exterior gypsum board sheathing. A weather-resistant membrane is applied over the sheathing, followed by mortar and lath. A thin stone veneer finishes the exterior face of the wall.
6" METAL STUDS 5/8" EXTERIOR GYP. BOARD SHEATHING 5/8" EXTERIOR GYP. BOARD SHEATHING WATER RESISTANT MEMBRANE MORTAR AND LATH THIN STONE VENEER WEATHER RESISTANT MEMBARNE MORTAR AND LATH THIN STONE VENEER Wall Section TYPE DESCRIPTION CC AS SHOWN
