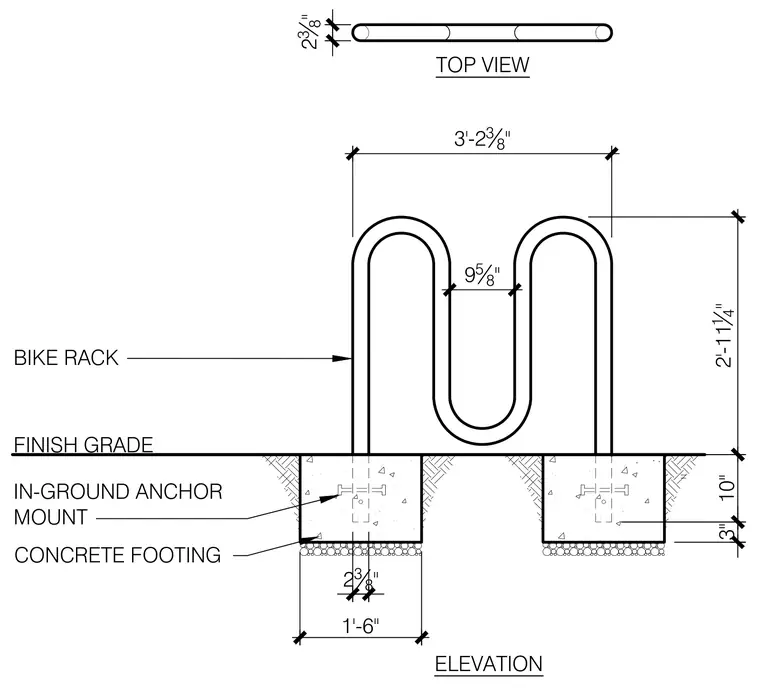

An in-ground anchor mount secures the bike rack within cast-in-place concrete footings located below the finish grade. The assembly features a tubular bike rack structure extending down into dedicated footings for short-term bicycle parking.
TOP VIEW 2 3 8 " 3'-2 3 8 " 9 5 8 " 2'-11 1 4 " 10" 3" FINISH GRADE BIKE RACK IN-GROUND ANCHOR MOUNT CONCRETE FOOTING ELEVATION 2 3 8 " 1'-6"
