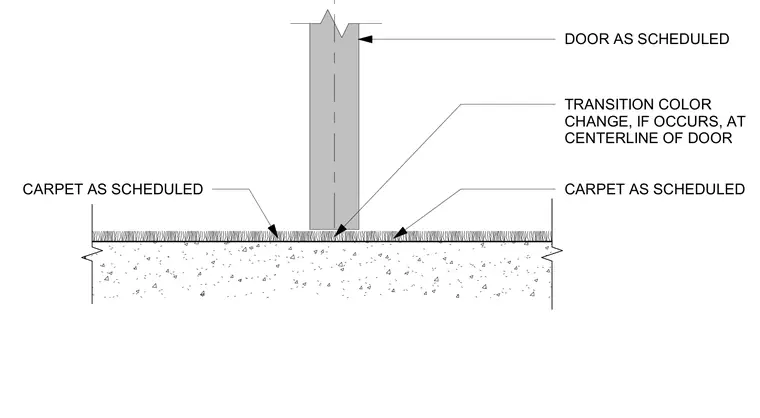

Carpet flooring meets at the centerline of the door as scheduled. A color change, if it occurs, is aligned directly beneath the door centerline.
CARPET AS SCHEDULED DOOR AS SCHEDULED TRANSITION COLOR CHANGE, IF OCCURS, AT CENTERLINE OF DOOR CARPET AS SCHEDULED
