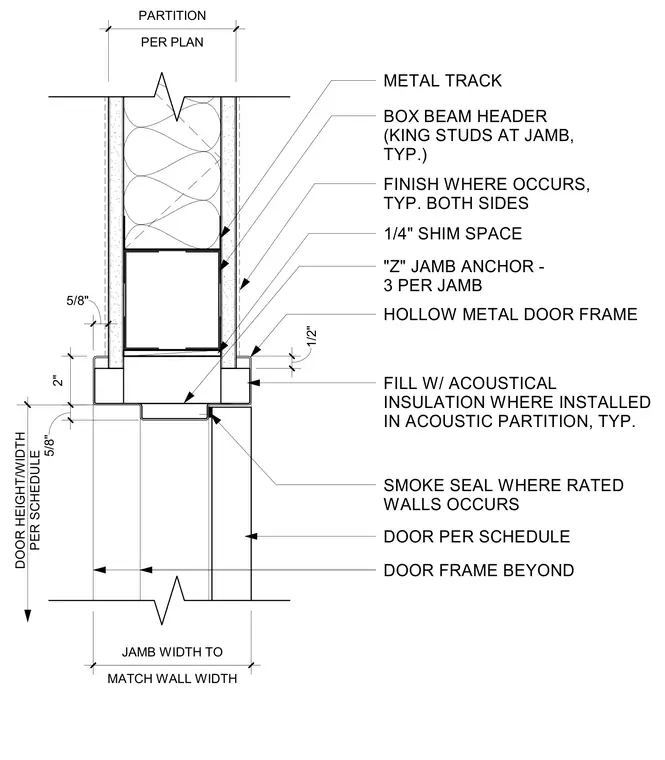

A hollow metal door frame set within a metal stud partition includes a box beam header with typical king studs at the jamb. A quarter-inch shim space is provided at the perimeter, secured by three Z-jamb anchors per jamb. The assembly includes gypsum board finishes on both sides, acoustical insulation filled within acoustic partitions, and a smoke seal installed at rated walls.
5/8" 2" PER PLAN PARTITION MATCH WALL WIDTH JAMB WIDTH TO DOOR HEIGHT/WIDTH PER SCHEDULE METAL TRACK BOX BEAM HEADER (KING STUDS AT JAMB, TYP.) FINISH WHERE OCCURS, TYP. BOTH SIDES "Z" JAMB ANCHOR - 3 PER JAMB HOLLOW METAL DOOR FRAME FILL W/ ACOUSTICAL INSULATION WHERE INSTALLED IN ACOUSTIC PARTITION, TYP. DOOR PER SCHEDULE DOOR FRAME BEYOND SMOKE SEAL WHERE RATED WALLS OCCURS 5/8" 1/2" 1/4" SHIM SPACE
