Accessible Vanity Counter and Removable Access Panel Section

Materials

Elements

About this detail

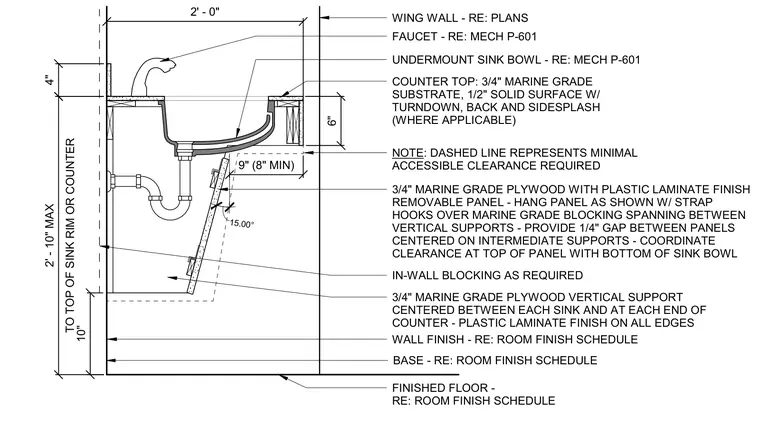

An accessible vanity counter assembly features a three-quarter-inch marine grade plywood substrate topped with a half-inch solid surface material complete with turndown, back, and sidesplashes. The undermount sink bowl is supported by three-quarter-inch marine grade plywood vertical supports finished with plastic laminate on all edges. A removable access panel constructed of three-quarter-inch marine grade plywood with a plastic laminate finish hangs from strap hooks over marine grade blocking spanning between vertical supports, maintaining a quarter-inch gap between panels centered on intermediate supports. Dashed lines indicate the minimal accessible clearance required beneath the counter, with clearances coordinated between the top of the removable panel and the bottom of the sink bowl.
