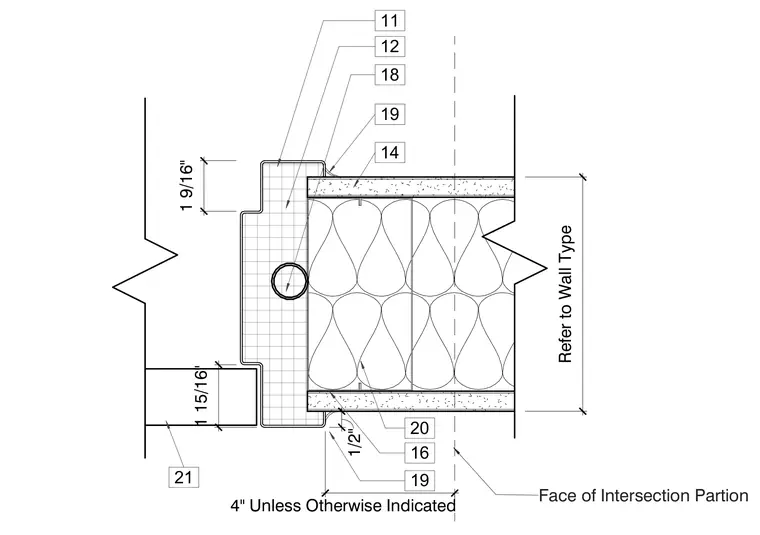

An acoustical or rated door jamb assembly consists of a hollow metal frame intersecting a framed partition wall. Gypsum wallboard layers abut the frame return with sealant beads at the joints. Stud framing and batt insulation fill the interior partition cavity per the referenced wall type.
Face of Intersection Partion 4" Unless Otherwise Indicated 16 19 20 21 19 18 12 11 1 15/16" 1 9/16" 1/2" 14 Refer to Wall Type
