A 1-inch diameter polyvinyl chloride pipe sleeve runs through concrete columns or shear walls with a minimum spacing of 6 inches. A three-quarter-inch plywood form encloses the concrete pour, featuring three-quarter-inch chamfers at all corners. Seven-eighth-inch wood dowels fasten to the form using wood screws. One-inch diameter Dywidag push-fit cones are removed after stripping off the form. Rebar locations must be verified before installing the PVC pipe sleeves.

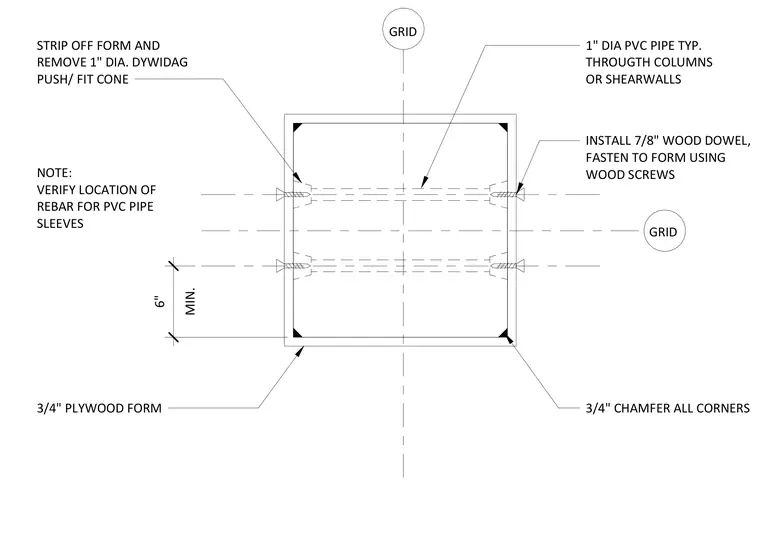

1" DIA PVC PIPE TYP. THROUGTH COLUMNS OR SHEARWALLS MIN. 6" 3/4" CHAMFER ALL CORNERS INSTALL 7/8" WOOD DOWEL, FASTEN TO FORM USING WOOD SCREWS 3/4" PLYWOOD FORM STRIP OFF FORM AND REMOVE 1" DIA. DYWIDAG PUSH/ FIT CONE NOTE: VERIFY LOCATION OF REBAR FOR PVC PIPE SLEEVES GRID GRID
