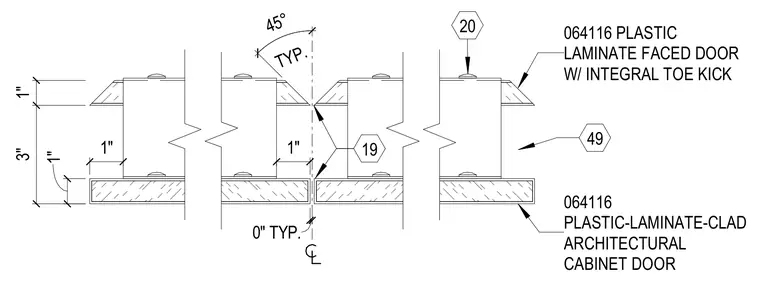

Plastic-laminate-clad architectural cabinet doors with an integral toe kick are configured around a center line. The doors feature a 45-degree angle profile at the meeting edges, with typical dimensions of 1 inch and 3 inches indicating spacing and reveals. A zero-inch clearance is noted typically at the center line joint. Specific material callouts specify plastic laminate faced doors.
1" 3" 1" TYP. 45° 1" 1" 064116 PLASTIC-LAMINATE-CLAD ARCHITECTURAL CABINET DOOR 064116 PLASTIC LAMINATE FACED DOOR W/ INTEGRAL TOE KICK 0" TYP. 19 20 49
