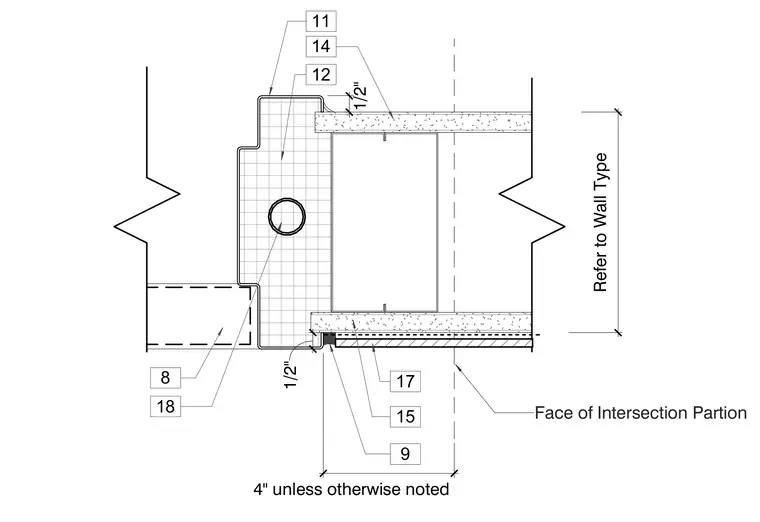

An interior door jamb assembly detailed with a hollow metal frame and stud partition construction. The frame connects to steel studs and gypsum wallboard layers extending to the partition intersection. Clearances and dimensional tolerances are indicated for the jamb reveal and frame alignment.
4" unless otherwise noted Face of Intersection Partion Refer to Wall Type 9 15 17 12 8 18 14 11 1/2" 1/2"
