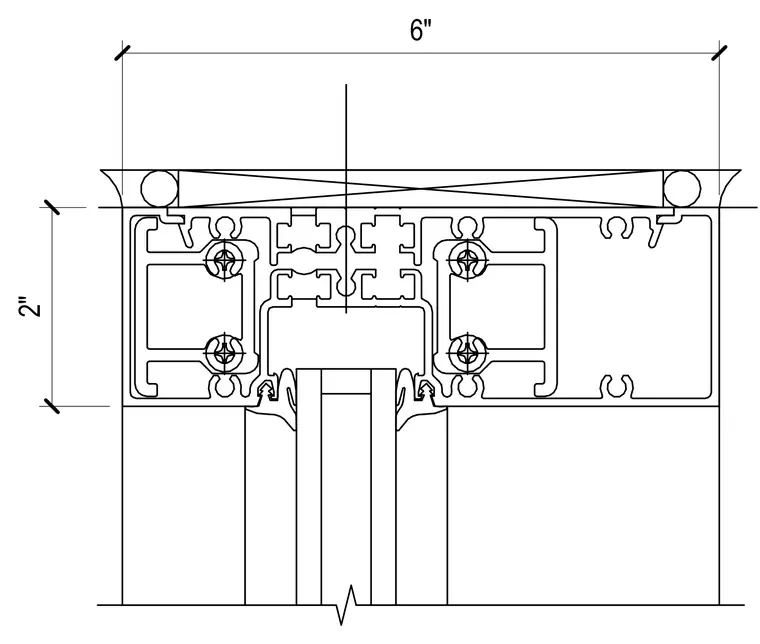

An extruded aluminum storefront head assembly measuring six inches wide by two inches high incorporates internal screw splines and fastener channels. Glazing gaskets secure the glass pane within the aluminum framing member. The head profile interfaces with an overhead member flanked by cylindrical seals.
