A frameless window head assembly utilizes a CRL SR2S sidelite rail secured beneath a box header. The glazing consists of one-half-inch tempered or float glass installed per the acoustical report and manufacturer recommendations, shimmed as necessary. The design requires a clear span straight header without diagonal bracing, sized with minimum gauge thickness to meet the glazing shoe requirements.

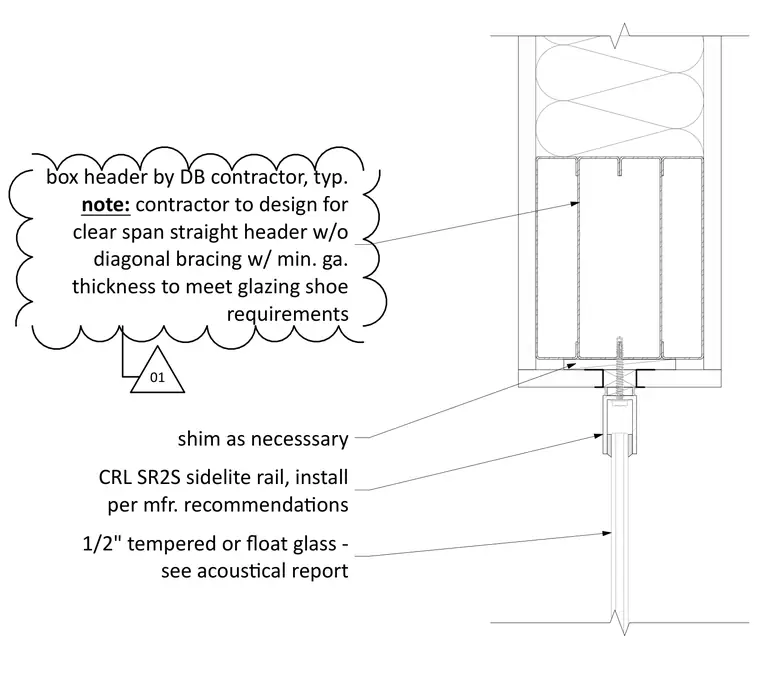

1/2" tempered or float glass - see acous Ɵcal report CRL SR2S sidelite rail, install per mfr. recommenda Ɵons shim as necesssary box header by DB contractor, typ. note: contractor to design for clear span straight header w/o diagonal bracing w/ min. ga. thickness to meet glazing shoe requirements 01
