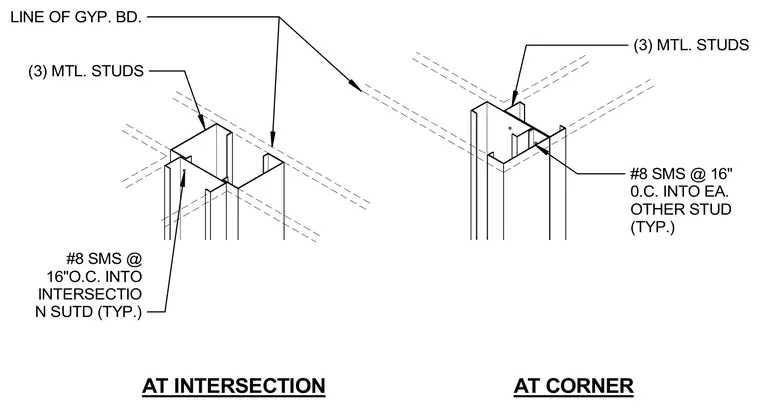

Three metal studs form the intersection and corner framing conditions with a continuous line of gypsum board lining the partition faces. At the intersection, studs are fastened with number eight self-tapping sheet metal screws at sixteen inches on center into the intersecting stud. At the corner, studs are similarly secured with number eight self-tapping sheet metal screws at sixteen inches on center into each other stud.
#8 SMS @ 16"O.C. INTO INTERSECTIO N SUTD (TYP.) (3) MTL. STUDS LINE OF GYP. BD. (3) MTL. STUDS #8 SMS @ 16" 0.C. INTO EA. OTHER STUD (TYP.) AT INTERSECTION AT CORNER
