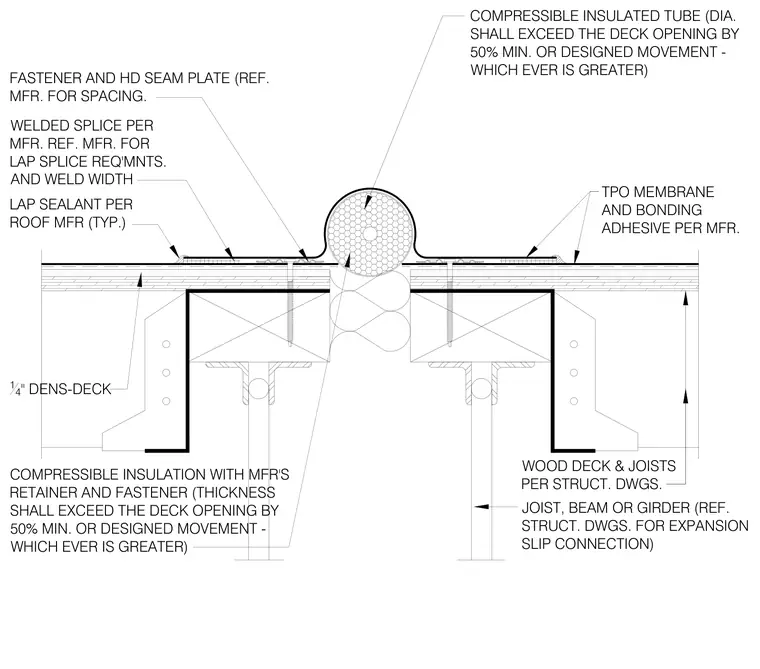

A roof expansion joint assembly crosses wood deck and joists supported by structural steel framing. A TPO membrane with bonding adhesive runs across a one-quarter inch Dens-Deck board, secured with heavy-duty fasteners and seam plates per the manufacturer. A compressible insulated tube with a diameter exceeding the deck opening by fifty percent minimum or designed movement fills the joint space. Additional compressible insulation with a retainer and fastener is installed within the opening. Lap sealant is applied typically at membrane laps.
TPO MEMBRANE AND BONDING ADHESIVE PER MFR. 14 " DENS-DECK FASTENER AND HD SEAM PLATE (REF. MFR. FOR SPACING. JOIST, BEAM OR GIRDER (REF. STRUCT. DWGS. FOR EXPANSION SLIP CONNECTION) WELDED SPLICE PER MFR. REF. MFR. FOR LAP SPLICE REQ'MNTS. AND WELD WIDTH COMPRESSIBLE INSULATION WITH MFR'S RETAINER AND FASTENER (THICKNESS SHALL EXCEED THE DECK OPENING BY 50% MIN. OR DESIGNED MOVEMENT - WHICH EVER IS GREATER) COMPRESSIBLE INSULATED TUBE (DIA. SHALL EXCEED THE DECK OPENING BY 50% MIN. OR DESIGNED MOVEMENT - WHICH EVER IS GREATER) WOOD DECK & JOISTS PER STRUCT. DWGS. LAP SEALANT PER ROOF MFR (TYP.)
