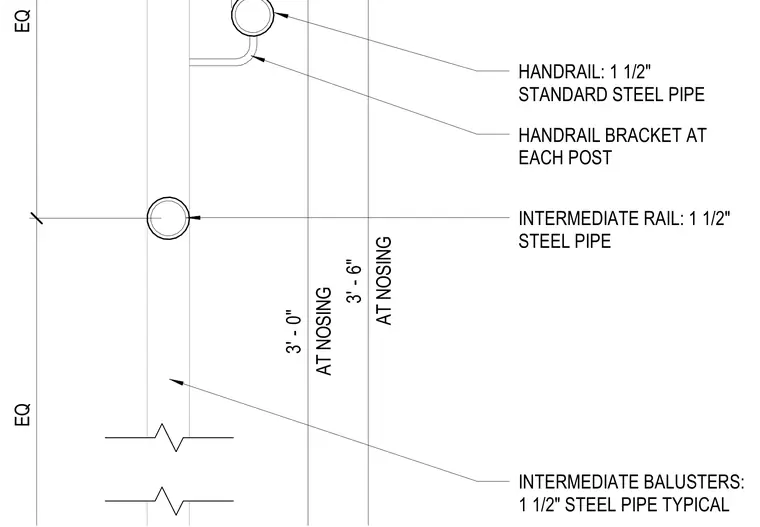

This stair railing assembly utilizes a one and a half inch standard steel pipe handrail mounted on handrail brackets at each post. An intermediate rail made of one and a half inch steel pipe runs parallel below the handrail. Intermediate balusters of one and a half inch steel pipe are spaced evenly and positioned typical at the stair nosing. Vertical dimensions locate the handrail at three feet six inches and the intermediate rail at three feet zero inches above the stair nosing.
HANDRAIL: 1 1/2" STANDARD STEEL PIPE INTERMEDIATE BALUSTERS: 1 1/2" STEEL PIPE TYPICAL AT NOSING 3' - 0" AT NOSING 3' - 6" HANDRAIL BRACKET AT EACH POST EQ EQ INTERMEDIATE RAIL: 1 1/2" STEEL PIPE
