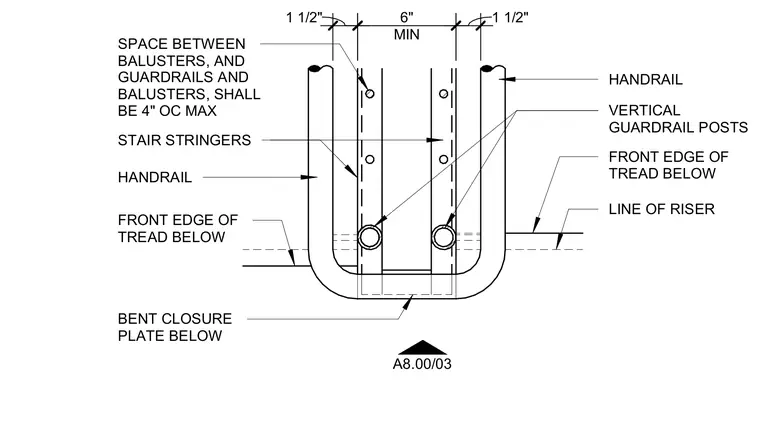

This plan detail shows a stair landing guardrail and handrail assembly aligning with the stair stringers and tread nosing below. Vertical guardrail posts are spaced with a minimum six-inch dimension between them, and a bent closure plate is positioned below. The handrail loops around the outside of the vertical posts, maintaining compliance with a maximum four-inch spacing between balusters, guardrails, and balusters. Dimensions indicate a one-and-a-half-inch offset from the post centerlines to the outer handrail edge.
1 1/2" MIN 6" 1 1/2" HANDRAIL VERTICAL GUARDRAIL POSTS SPACE BETWEEN BALUSTERS, AND GUARDRAILS AND BALUSTERS, SHALL BE 4" OC MAX FRONT EDGE OF TREAD BELOW LINE OF RISER STAIR STRINGERS HANDRAIL FRONT EDGE OF TREAD BELOW BENT CLOSURE PLATE BELOW A8.00/03
