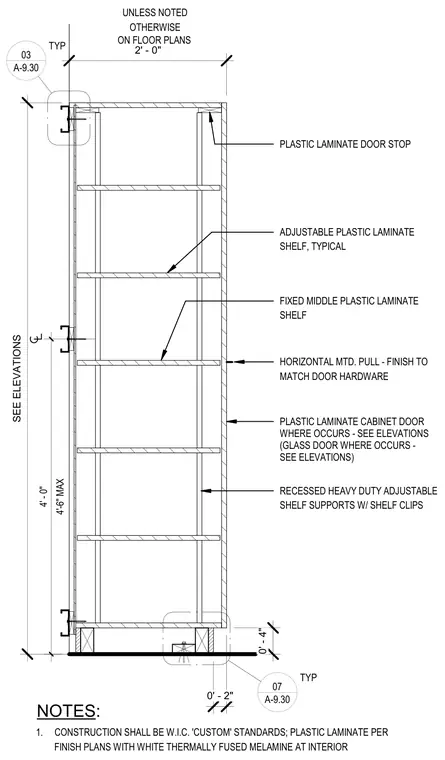

Architectural millwork cabinet construction conforms to Woodwork Institute custom standards with plastic laminate finishes and white thermally fused interior melamine. The assembly features adjustable plastic laminate shelves supported by recessed heavy-duty adjustable shelf supports and shelf clips. A fixed middle shelf provides structural stability, while plastic laminate cabinet doors or optional glass doors are paired with horizontal mounted pulls matching the door hardware. Cabinet construction includes a plastic laminate door stop, a four-inch base, and an overall height dimension of four feet six inches maximum.
1. CONSTRUCTION SHALL BE W.I.C. 'CUSTOM' STANDARDS; PLASTIC LAMINATE PER FINISH PLANS WITH WHITE THERMALLY FUSED MELAMINE AT INTERIOR NOTES: PLASTIC LAMINATE DOOR STOP ADJUSTABLE PLASTIC LAMINATE FIXED MIDDLE PLASTIC LAMINATE HORIZONTAL MTD. PULL - FINISH TO MATCH DOOR HARDWARE RECESSED HEAVY DUTY ADJUSTABLE SHELF SUPPORTS W/ SHELF CLIPS UNLESS NOTED OTHERWISE SHELF, TYPICAL SHELF ON FLOOR PLANS PLASTIC LAMINATE CABINET DOOR WHERE OCCURS - SEE ELEVATIONS (GLASS DOOR WHERE OCCURS - SEE ELEVATIONS) 0' - 4" 0' - 2" SEE ELEVATIONS 2' - 0" 4'-6" MAX 4' - 0" A-9.30 07 TYP A-9.30 03 TYP
