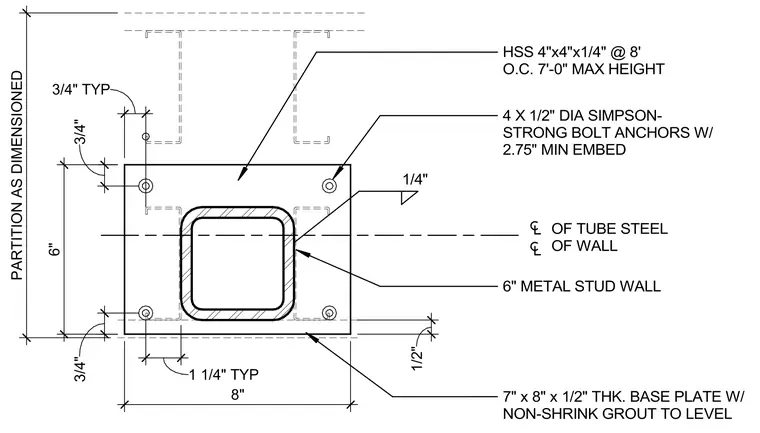

A 4-inch by 4-inch by 1/4-inch hollow structural section steel tube column stands at a maximum height of 7 feet and spaces at 8 feet on center within a 6-inch metal stud wall. The steel tube centers on a 7-inch by 8-inch by 1/2-inch thick base plate set over non-shrink grout for leveling. Four 1/2-inch diameter Simpson Strong-Bolt anchors with a 2.75-inch minimum embedment secure the base plate to the supporting substrate. Fillet welds connect the base plate to the hollow structural section tube.
HSS 4"x4"x1/4" @ 8' O.C. 7'-0" MAX HEIGHT 3/4" TYP PARTITION AS DIMENSIONED 6" 3/4" 3/4" 8" 1 1/4" TYP OF TUBE STEEL OF WALL 6" METAL STUD WALL 7" x 8" x 1/2" THK. BASE PLATE W/ NON-SHRINK GROUT TO LEVEL 1/4" 4 X 1/2" DIA SIMPSON- STRONG BOLT ANCHORS W/ 2.75" MIN EMBED 1/2"
