Structural · A-MZ7R7

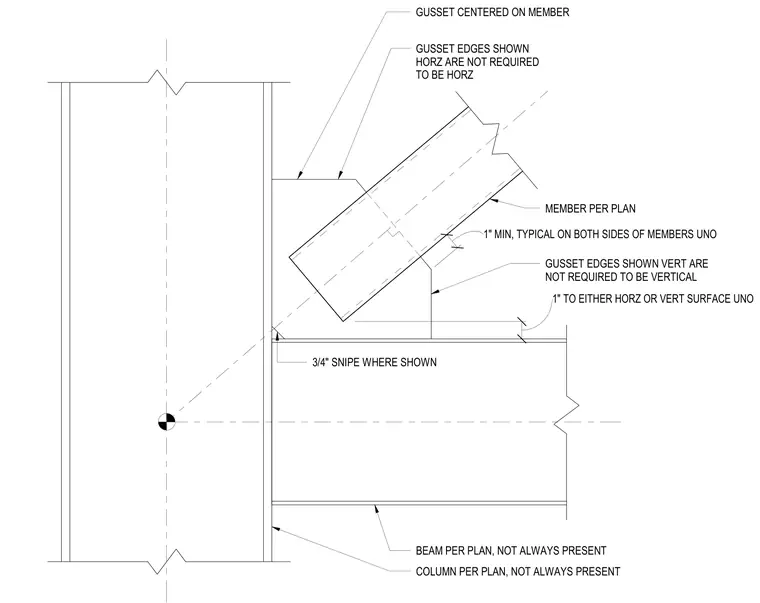

Typical Steel Gusset Plate Connection Detail

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Gusset Plate

About this detail

A typical steel gusset plate connection occurs at the intersection of a column, beam, and diagonal member sized per plan. The gusset plate is centered on the member with a minimum one-inch clearance to either horizontal or vertical surfaces unless otherwise noted. Gusset edges shown as vertical or horizontal are not required to be strictly plumb or level. A three-quarter-inch snipe is applied where shown, and the beam and column members are included as specified per plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
