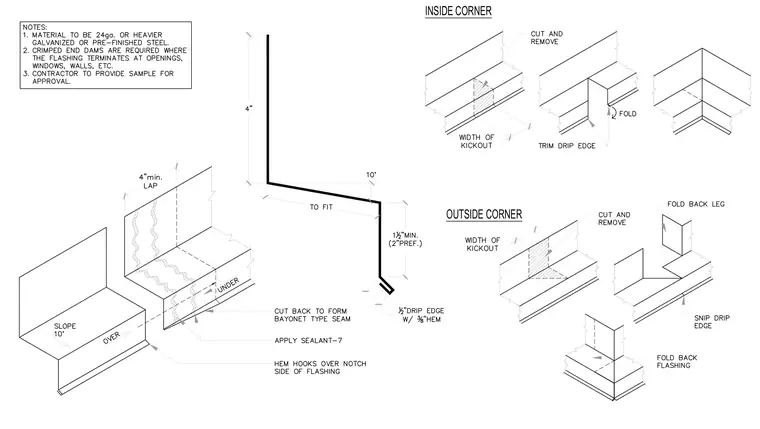

The flashing profile is fabricated from twenty-four gauge or heavier galvanized or pre-finished steel, requiring crimped end dams at openings, windows, and walls with contractor samples for approval. Horizontal runs feature a four-inch minimum lap with sealant applied between sections and bayonet type seams. Inside and outside corners require measured kickouts, cut-and-remove steps, trim drip edges, and folded back legs to maintain waterproofing continuity.
