One and one-half inch diameter painted steel tube rails run along the top and bottom of the assembly, supported by posts spaced at a maximum of four feet on center. The posts anchor into core-drilled pockets in the concrete substrate and are secured with non-shrink grout or cementitious fill. A self-leveling sealant is applied at the top of the core-drilled opening around the railing support. All steel components are shop primed and painted.

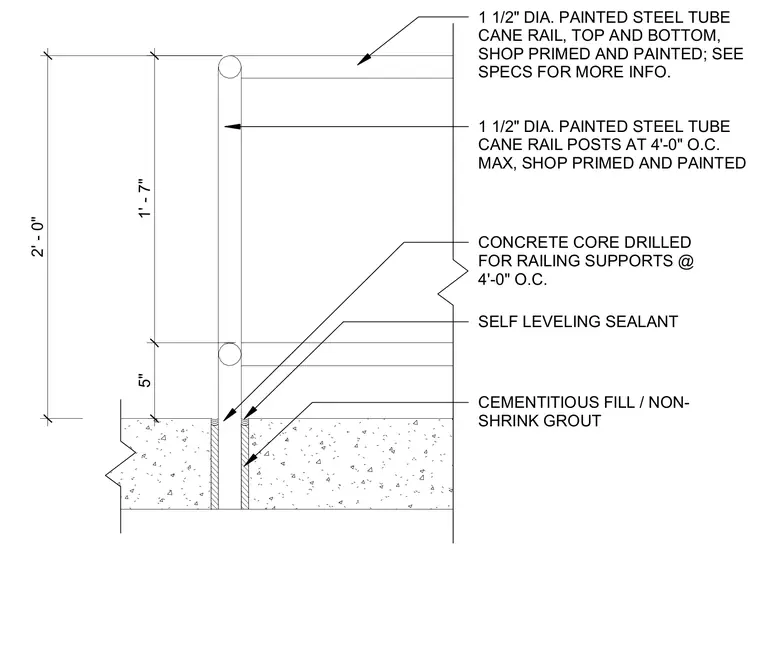

5" 1' - 7" 2' - 0" 1 1/2" DIA. PAINTED STEEL TUBE CANE RAIL, TOP AND BOTTOM, SHOP PRIMED AND PAINTED; SEE SPECS FOR MORE INFO. CONCRETE CORE DRILLED FOR RAILING SUPPORTS @ 4'-0" O.C. SELF LEVELING SEALANT CEMENTITIOUS FILL / NON- SHRINK GROUT 1 1/2" DIA. PAINTED STEEL TUBE CANE RAIL POSTS AT 4'-0" O.C. MAX, SHOP PRIMED AND PAINTED
