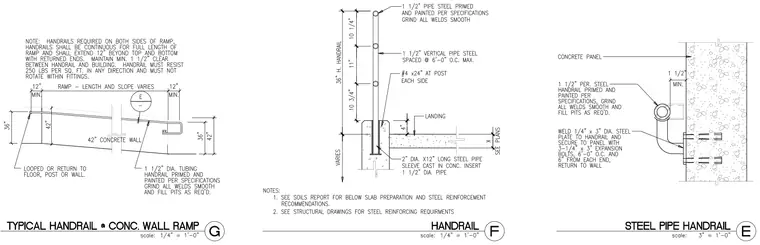

This assembly details a 1 1/2-inch primed and painted steel pipe handrail secured to a concrete wall ramp. The handrail maintains a 36-inch height above the ramp surface with 1 1/2-inch clearance from the wall, featuring returned ends and vertical pipe supports spaced at 6 feet on center maximum. Vertical posts anchor into a 2-inch diameter by 12-inch long steel pipe sleeve cast into the concrete landing, reinforced with number 4 bars at 24 inches on each side. Wall-mounted connections weld a 1/4-inch by 3-inch diameter steel plate to the handrail, secured to the concrete panel with three 1/4-inch by 3-inch expansion bolts spaced at 6 feet on center and 6 inches from each end.
