Architectural · A-MYRV2

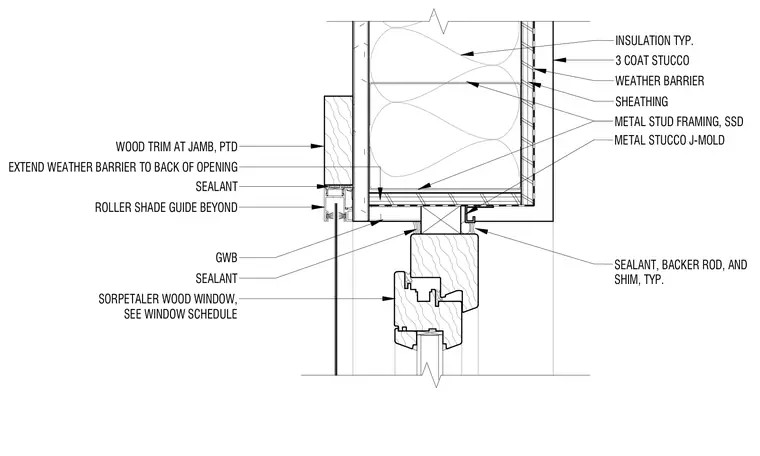

Classroom Window Jamb Detail at Stucco and Metal Stud Wall

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Windows Insulation Roof / Floor Openings

About this detail

The wood window is set into a cold-formed steel stud framing rough opening lined with gypsum wallboard and secured with typical shims, backer rods, and perimeter sealant. The exterior wall assembly incorporates sheathing, a continuous weather barrier extended into the opening, and a three-coat stucco finish terminated with a metal stucco J-mold. An interior painted wood trim piece finishes the jamb alongside a roller shade guide located beyond the window frame.
