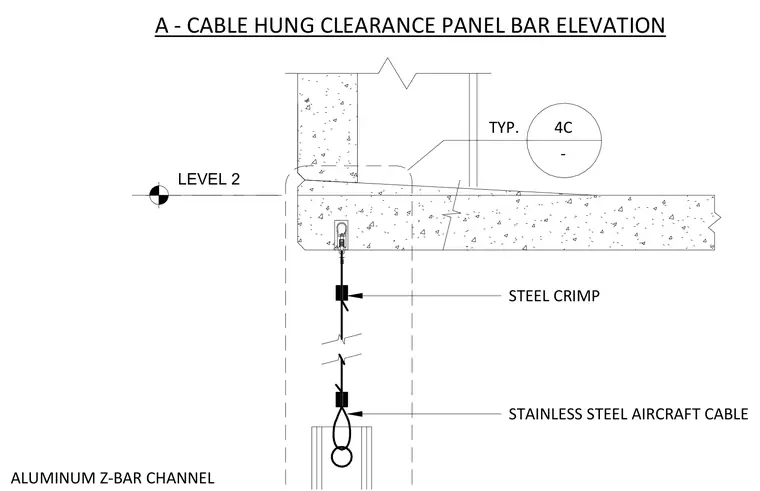

A stainless steel aircraft cable suspends the clearance panel bar below the structural concrete floor slab. The cable is secured at the upper anchorage and formed with loops fastened by steel crimps. An aluminum Z-bar channel frames the clearance panel assembly at the bottom. Level 2 elevation datum is marked adjacent to the structural slab edge.
STAINLESS STEEL AIRCRAFT CABLE STEEL CRIMP ALUMINUM Z-BAR CHANNEL 4C - TYP. LEVEL 2 A - CABLE HUNG CLEARANCE PANEL BAR ELEVATION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
