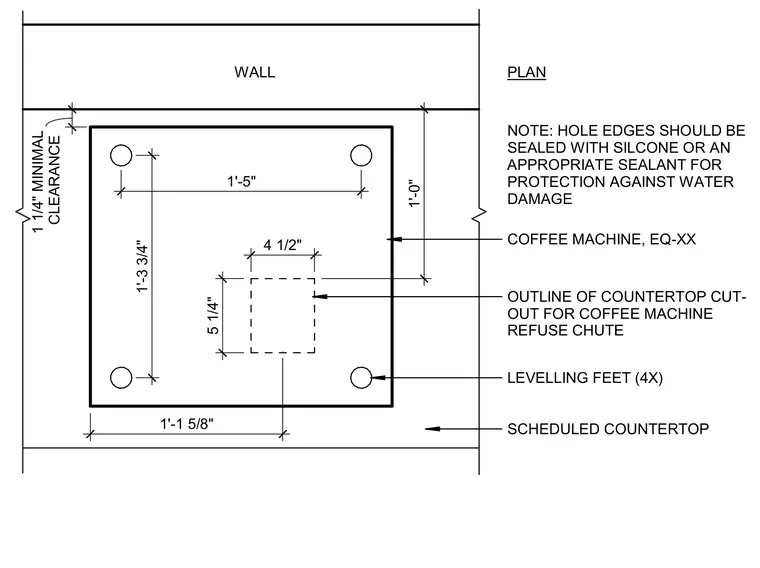

This plan detail shows the layout for a scheduled countertop supporting a coffee machine with four leveling feet and a refuse chute cutout. The coffee machine footprint measures 1 foot 5 inches by 1 foot 0 inches, maintaining a 1 1/4 inch minimal clearance from the back wall. The refuse chute cutout is positioned with dimensions of 4 1/2 inches by 5 1/4 inches, offset 1 foot 1 5/8 inches from the left edge and 1 foot 3 3/4 inches from the rear. A drawing note requires all hole edges to be sealed with silicone or an appropriate sealant to protect against water damage.
PLAN WALL CLEARANCE 1 1/4" MINIMAL 1'-0" 4 1/2" 5 1/4" 1'-1 5/8" OUTLINE OF COUNTERTOP CUT- OUT FOR COFFEE MACHINE REFUSE CHUTE LEVELLING FEET (4X) SCHEDULED COUNTERTOP NOTE: HOLE EDGES SHOULD BE SEALED WITH SILCONE OR AN APPROPRIATE SEALANT FOR PROTECTION AGAINST WATER DAMAGE 1'-3 3/4" 1'-5" COFFEE MACHINE, EQ-XX
