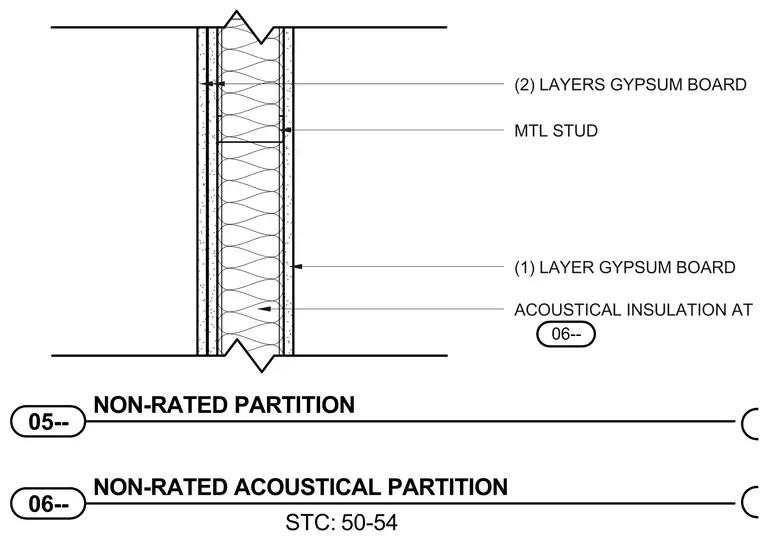

This assembly consists of a metal stud framing member filled with acoustical insulation. One side of the partition is finished with two layers of gypsum board, while the opposite side receives one layer of gypsum board. The wall assembly achieves a sound transmission class rating between 50 and 54.
ACOUSTICAL INSULATION AT (2) LAYERS GYPSUM BOARD (1) LAYER GYPSUM BOARD STC: 06-- NON-RATED ACOUSTICAL PARTITION 50-54 05-- NON-RATED PARTITION MTL STUD 06--
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
